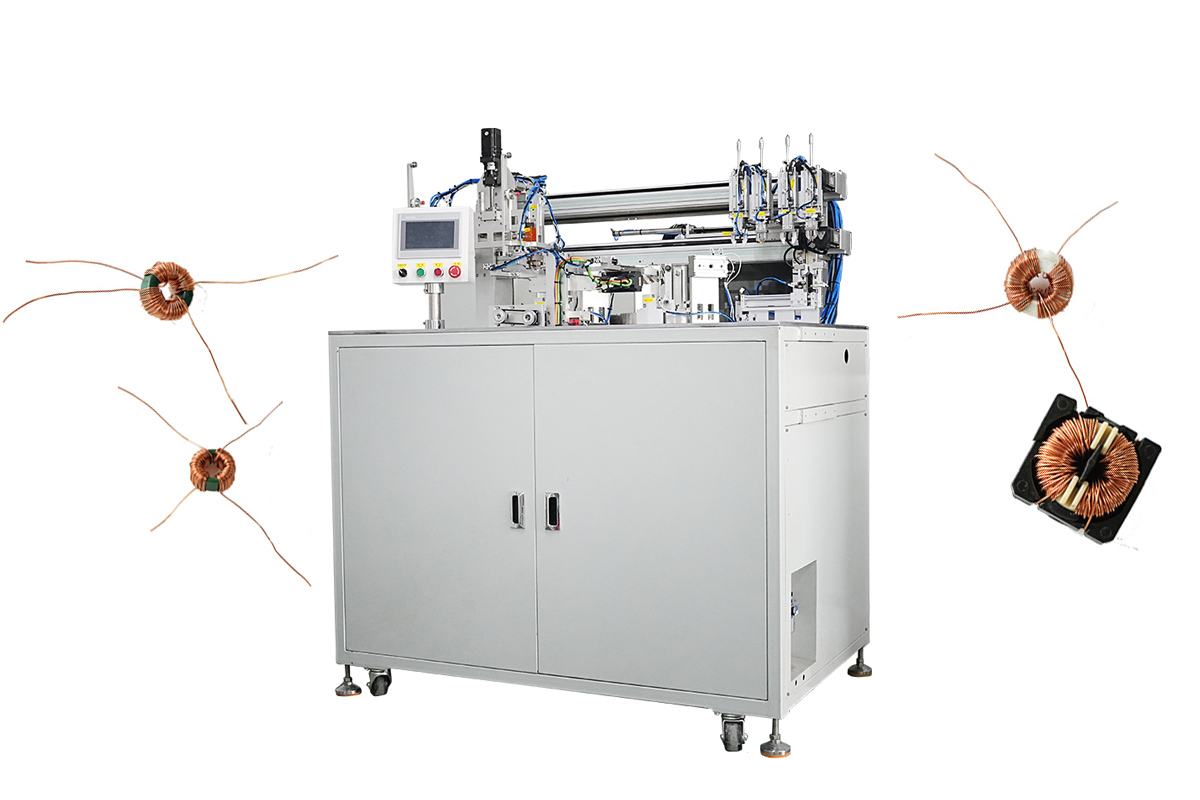

A Copper Coil Winding Machine is a crucial piece of equipment in the manufacturing of electrical components that rely on copper coils, such as transformers, motors, inductors, and solenoids. This machine automates the process of winding copper wire onto a spool or bobbin, ensuring high precision, uniformity, and speed. The following sections break down the operation of the Copper Coil Winding Machine, highlighting how it efficiently produces high-quality coils for a variety of applications.
Basic Working Principle
At its core, the Copper Coil Winding Machine feeds copper wire from a spool or wire reel through a series of rollers or guides. These components direct the wire to the winding area, where it is wound tightly and evenly onto a spool or bobbin. The machine’s automation system controls critical parameters such as winding speed, tension, layer count, and the number of turns to ensure a uniform and consistent coil.
A key feature of these machines is their ability to monitor and adjust to variations in tension, wire alignment, and placement, ensuring the copper wire is wound precisely and without risk of breakage.
Components of a Copper Coil Winding Machine
Wire Feed Mechanism
The copper wire is unspooled from a wire reel and directed through a series of guides and rollers. These ensure smooth and consistent feeding, preventing tangling or breakage of the wire during the winding process.
Winding Spool/Bobbin
The spool or bobbin serves as the receptacle where the wound copper wire is collected. The machine’s motor controls the rotation of the spool to guide the wire into place in even, uniform layers.
Tension Control System
One of the most critical features of the Copper Coil Winding Machine is the tension control system. It ensures that the copper wire is fed at a consistent tension, preventing it from becoming too tight (which could cause breakage) or too loose (which could lead to inconsistent winding). The system uses sensors to constantly monitor and adjust the tension during the winding process.
Programmable Settings
Most modern copper coil winding machines are equipped with a programmable interface. This allows the operator to set parameters like winding speed, the number of turns per layer, total layers, and the total number of coils to be wound. These settings ensure the machine meets the specific requirements of the coil being produced.
Sensors and Feedback Mechanisms
Sensors play a vital role in monitoring the winding process. They track the wire’s position on the spool and detect any deviations in tension, misalignment, or potential jams. These sensors send feedback to the machine’s control system, which adjusts the winding process in real time to maintain smooth operation and avoid errors.
Key Operational Steps
Wire Unspooling and Guiding
The copper wire is unspooled from a large reel and fed through a series of rollers or guides. These components help maintain proper alignment, preventing the wire from tangling or misdirecting.
Wire Feeding and Tension Control
The machine uses an automatic tensioning system to regulate the feed of the copper wire. This system ensures the wire is pulled with the correct tension, preventing issues like wire breakage, uneven winding, or coil deformation.
Winding the Coil
The wire is wound around the spool or bobbin. The machine’s motor rotates the spool, and the wire is laid down in precise, uniform layers. Depending on the settings, the wire may be wound in a specific pattern, such as cross-winding, for even distribution of turns.
Layer Counting and Adjustment
As the wire is wound, the machine keeps track of the number of layers and turns. Once a layer is complete, the machine adjusts the positioning to ensure the next layer is aligned correctly. This process continues until the desired coil specifications are achieved.
Completion and Ejection
Once the winding process is complete, the machine automatically stops, and the wound coil is carefully removed from the spool. The machine is then ready for the next cycle or can be reset for a different coil size or type.
Advanced Features for Efficiency and Precision
Automatic Stopping and Restarting
Many Copper Coil Winding Machines have the ability to automatically stop once the winding is complete or if an error is detected (e.g., wire breakage or tension loss). They can also restart seamlessly, minimizing downtime and ensuring continuous operation.
Speed Control and Optimization
The machine’s speed is adjustable based on the material and desired winding characteristics. For instance, fragile or thinner copper wires may require slower winding speeds to avoid damage, while thicker wires can be wound at higher speeds to increase efficiency.
Customizable Winding Patterns
Advanced machines allow for programmable winding patterns, including parallel winding, cross winding, and multi-layer winding. This flexibility makes the Copper Coil Winding Machine suitable for various applications, from power transformers to small inductors.
Applications of Copper Coil Winding Machines
Transformers: Winding copper coils for electrical transformers, ensuring efficient energy transfer.
Motors and Generators: Used for winding coils in electric motors, which are critical for generating mechanical power.
Inductors: Manufacturing inductors used in power supplies, circuits, and other electronic applications.
Coils for Wiring: Producing high-quality copper coils used in cables and wiring for various industries.
The Copper Coil Winding Machine revolutionizes the manufacturing of copper coils by automating the winding process, improving efficiency, and ensuring high precision. With the integration of advanced technologies like programmable settings, tension control systems, and real-time feedback mechanisms, these machines provide manufacturers with consistent, high-quality copper coils that meet demanding industry standards. Whether used for power transformers, motors, or inductors, the Copper Coil Winding Machine is an essential tool in modern electrical manufacturing.
