Equipment Advantage:

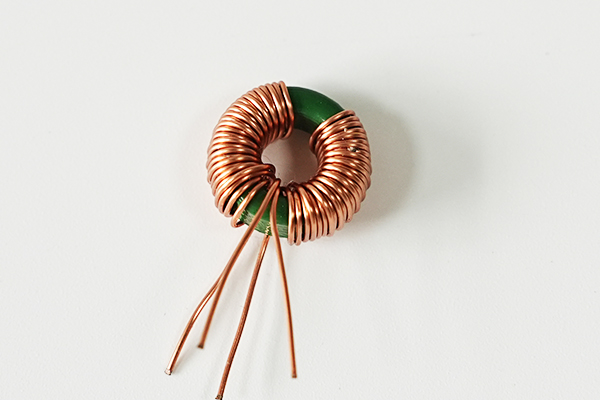

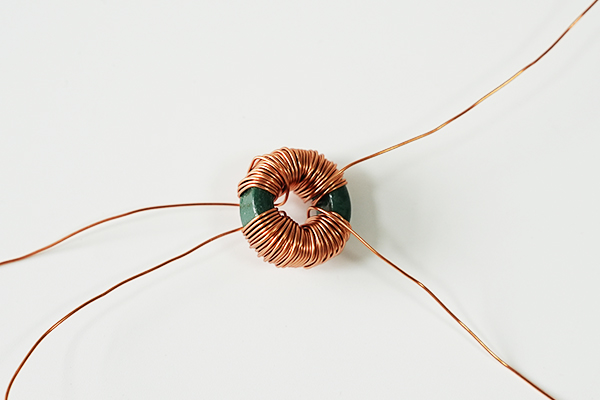

Differential Mode Winding Machine focuses on differential mode inductors to optimize their noise suppression effect in high frequency circuits, emphasizing high precision and multi-specification adaptability.
Equipment Advantage:

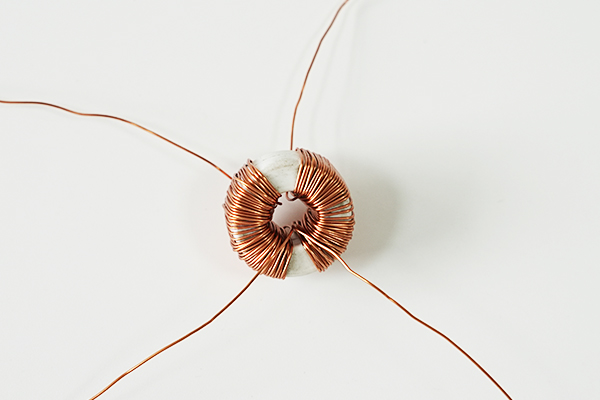

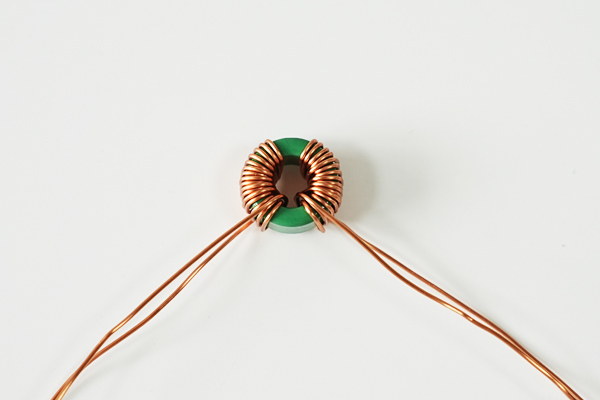

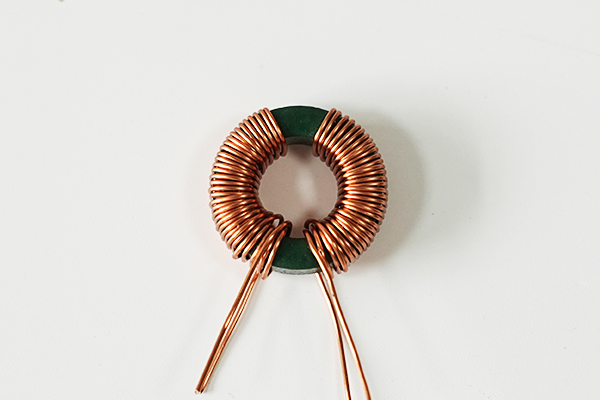

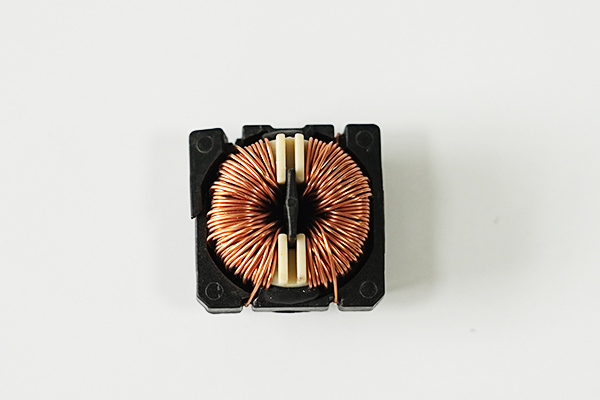

Common Mode Winding Machine focuses on the winding of common mode inductors to improve anti-interference capability, focusing on winding consistency and mass production capability.
Equipment Advantage:

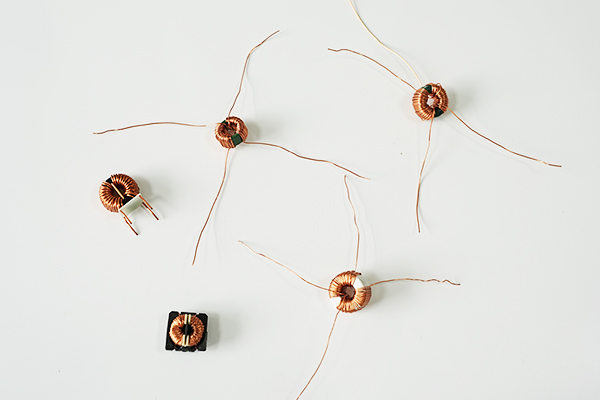

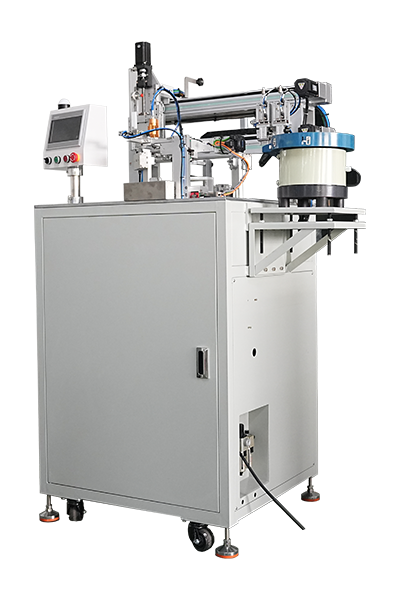

Single Station Butterfly Machine is suitable for small batch production, easy commissioning and high flexibility, especially for R&D and small production lines.
Equipment Advantage:

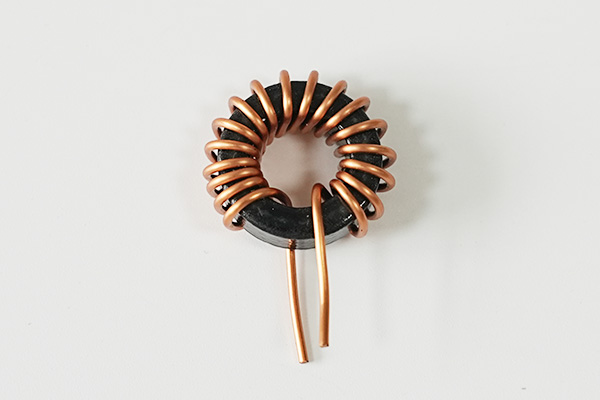

The Duplex Butterfly Machine has the advantage of being able to double its capacity in mass production for high volume lines.
Professional Automatic Coil Winding Machine Manufacturer for Precision Coil Production
Dongguan Chi Keung Electronic Technology Limited was founded in 2015 and specializes in the research, development, manufacturing, sales, and technical service of automatic winding equipment.
As a professional winding machine manufacturer, we focus on providing reliable and efficient winding solutions for customers working with inductors, transformers, common mode coils, differential mode coils, butterfly coils, and other magnetic components.
Our team combines equipment development, mechanical manufacturing, electrical control, process optimization, and after-sales support to help customers improve winding efficiency, production consistency, and overall manufacturing stability.
Our product range covers different types of automatic coil winding equipment designed for different coil structures, wire specifications, and production requirements.

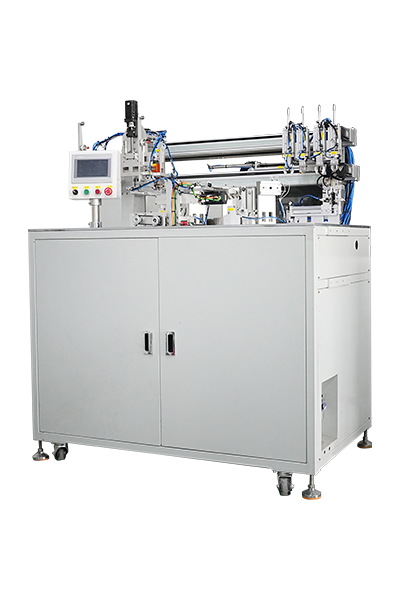

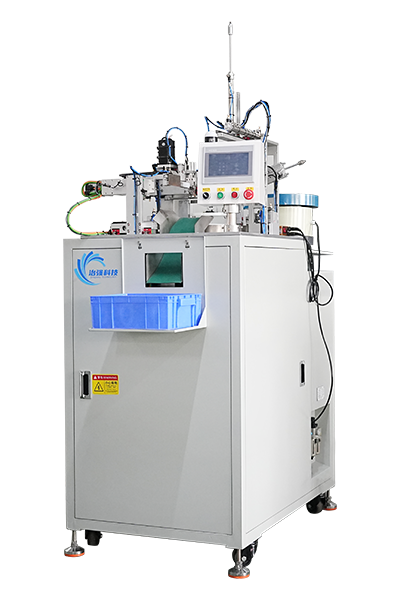

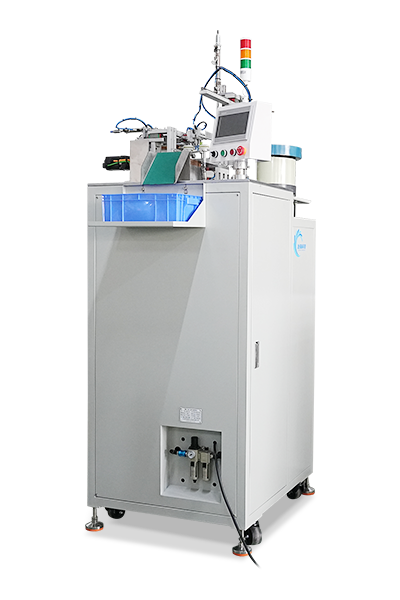

Automatic Toroidal Winding Machines

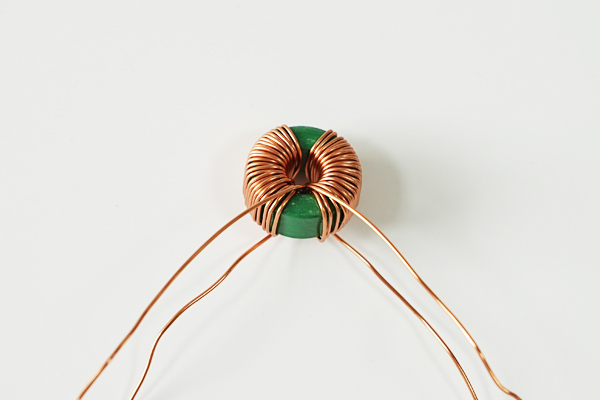

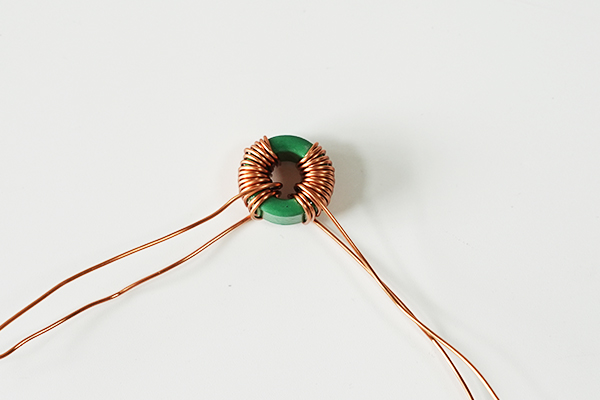

Butterfly Winding Machines

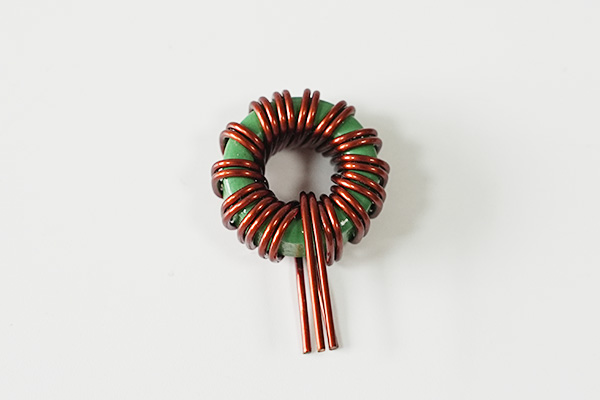

Common Mode Winding Machines
Differential Mode Winding Machines
Single-Station Winding Machines
Duplex Winding Machines
Single-Layer and Multi-Layer Reciprocating Winding Machines
Customized Automatic Coil Winding Equipment
Our equipment can be configured for different core materials and wire applications, including amorphous cores, iron powder cores, Fe-Si-Al cores, copper wire, and aluminum wire.
For customers with specific production requirements, we can also develop customized winding solutions based on core dimensions, wire diameter, winding method, number of turns, winding pitch, production capacity, and automation requirements.

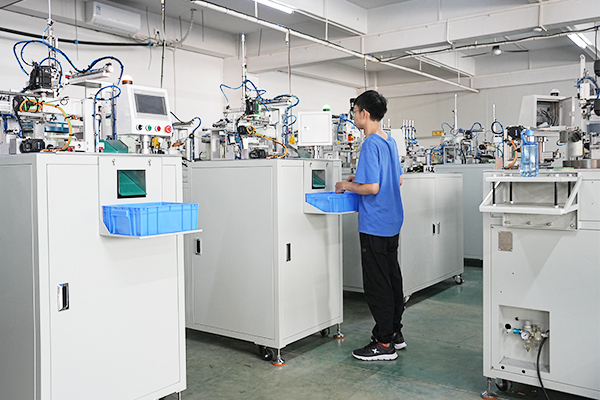

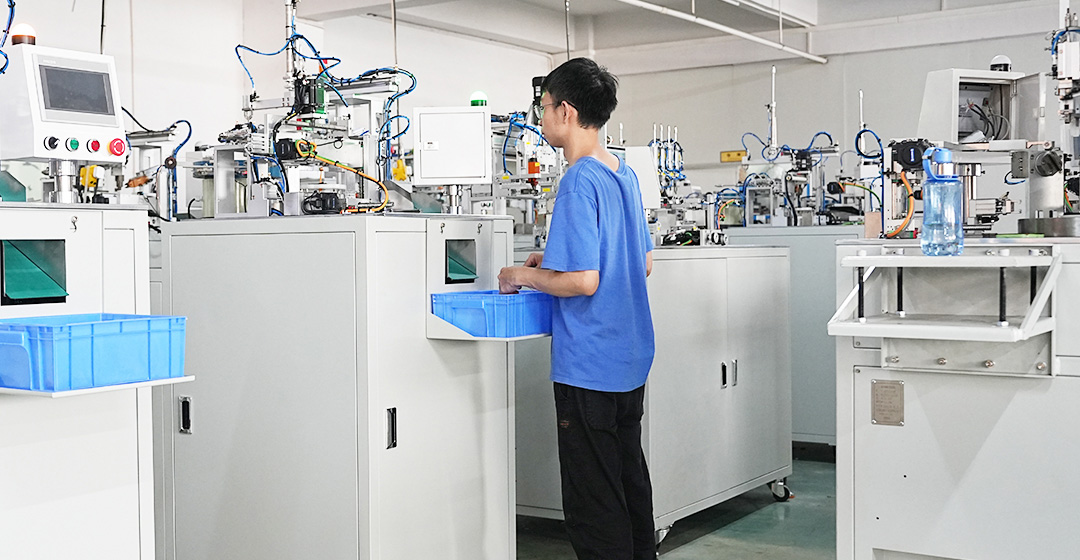

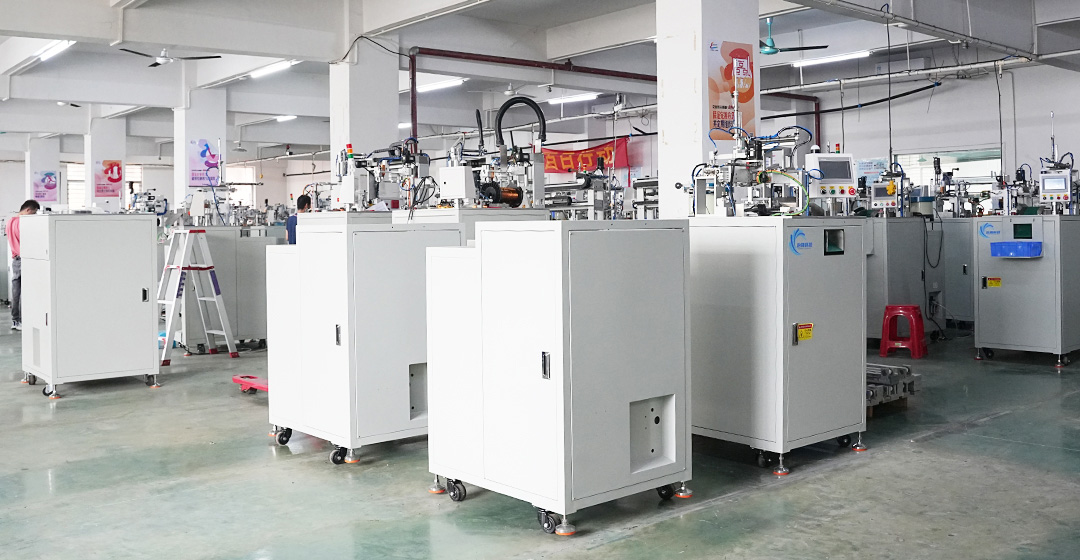

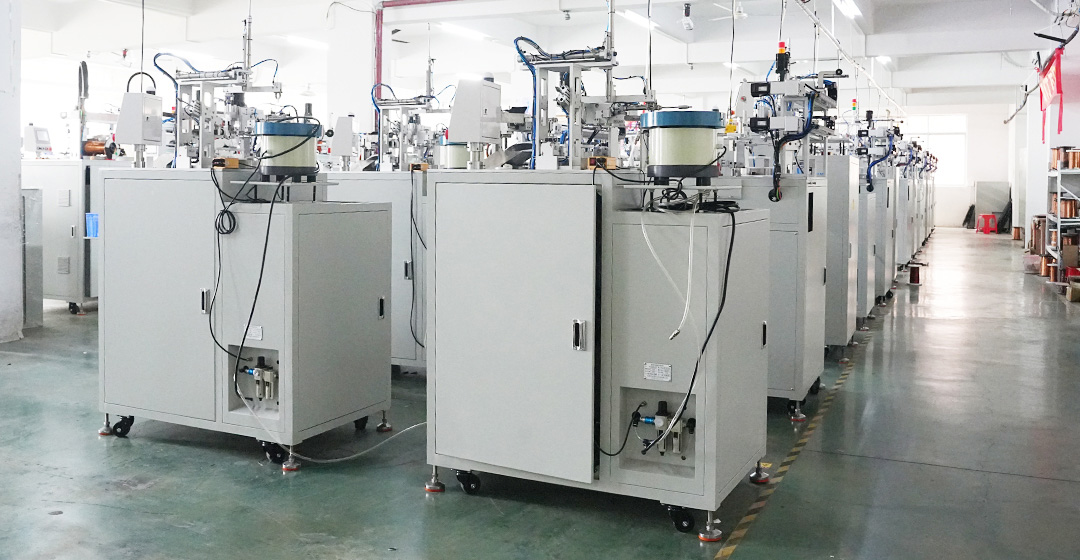

We operate our own machining center and maintain an integrated manufacturing process for key equipment components. This allows us to better control machining accuracy, assembly quality, equipment configuration, and delivery schedules.

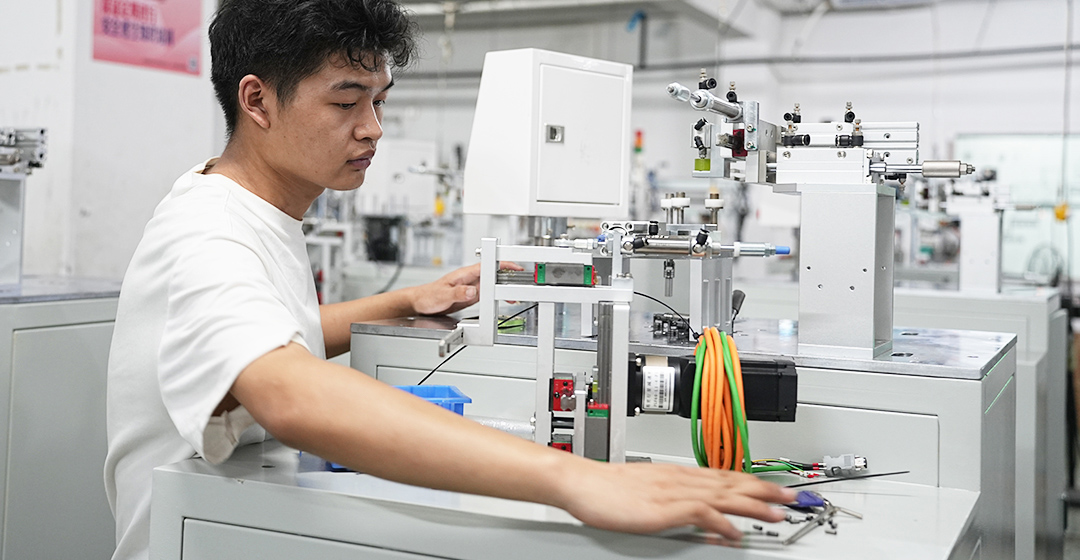

Our technical team includes more than 60 R&D and technical personnel covering mechanical design, electrical control, automation, software, and equipment commissioning. The team continuously improves machine structures and winding processes according to practical production requirements.
We also hold invention patents, utility model patents, and software copyrights related to our equipment and technologies. These capabilities support the continuous development of more efficient and precise automatic winding solutions.
We do not simply supply standard machines. Our engineers evaluate the actual coil structure, core type, wire material, wire diameter, winding requirements, and production target before recommending suitable equipment.
Different coil products require different winding methods. Our equipment can support various winding structures and production configurations, including single-layer, multi-layer, reciprocating, butterfly, common mode, and differential mode winding applications.
For manufacturers producing multiple coil models, quick product changeover is an important part of production efficiency. Our winding equipment can be configured with parameter storage and corresponding adjustment functions to simplify model changes and reduce setup time.
Under suitable operating conditions and with properly matched materials and parameters, our equipment can achieve operating availability of more than 95%. Machine structure, control systems, winding parameters, and production processes are considered together to improve long-term production stability.
Our services go beyond equipment sales. Depending on the customer's production requirements, we can provide several cooperation models:
Automatic winding equipment sales
Winding machine rental services
Coil winding processing services
Joint-production and manufacturing cooperation
Customized winding equipment development
Production process support
This flexible approach allows customers to choose a suitable cooperation model based on production volume, investment plans, product development stage, and manufacturing requirements.
Reliable technical support is an important part of automatic equipment operation. Our after-sales team provides equipment commissioning, operator training, troubleshooting, parameter adjustment, and technical guidance.
We can also help customers organize and store production parameters for different coil models, making it easier to switch between products and maintain consistent production settings.
When equipment upgrades or process improvements are required, our technical team can provide corresponding support according to the machine configuration and customer requirements.
Our standard service policy includes a one-year warranty for the complete machine and a lifetime warranty for the solenoid valve, helping customers operate their equipment with greater confidence.
Coil manufacturing requires more than simply increasing winding speed. Wire tension, winding position, pitch, number of turns, core dimensions, wire diameter, and machine movement must work together to achieve consistent results.
That is why we focus on the complete winding process rather than a single machine specification. Our goal is to help customers build a more stable production process with suitable automation, repeatable winding parameters, and efficient equipment operation.
Whether you are developing a new magnetic component or looking to automate an existing manual winding process, our engineering team can evaluate your application and recommend an appropriate winding solution.
We aim to become a trusted global supplier of automatic coil winding equipment by continuously improving equipment precision, automation, production efficiency, and technical service.
From initial product evaluation to equipment selection, commissioning, production support, and after-sales service, we work with customers to create practical winding solutions that meet real manufacturing requirements.
If you are looking for an automatic coil winding machine, toroidal winding machine, common mode winding machine, differential mode winding machine, or a customized winding solution, our team can help evaluate your application.
