What Is a Common Mode Choke and How Does It Work?

A Common Mode choke is a passive electromagnetic component used to reduce common-mode noise and electromagnetic interference (EMI) in electrical and electronic circuits. It is widely used in power supplies, communication equipment, industrial electronics, automotive systems, and other applications where noise suppression is important.

Unlike a standard inductor, a common mode choke typically uses two or more windings on the same magnetic core. This structure allows it to suppress unwanted common-mode noise while allowing the desired differential-mode current to pass with relatively low impedance.

How Does a Common Mode Choke Work?

The operating principle of a common mode choke is based on the direction of magnetic flux produced by currents flowing through its windings.

When normal differential-mode current flows through the two conductors, the magnetic flux generated by the windings largely cancels each other. As a result, the choke introduces relatively little impedance to the desired signal or power current.

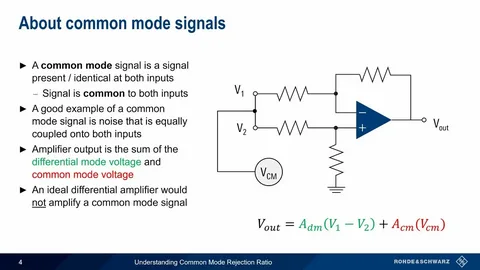

When common-mode noise appears on both conductors in the same direction, the magnetic fields generated by the windings reinforce each other. The resulting magnetic flux creates a high impedance to the unwanted high-frequency noise, helping to prevent it from propagating through the circuit.

This makes the common mode choke an effective solution for EMI filtering and common-mode noise suppression.

Common Mode Choke vs. Standard Inductor

Although both components use inductive principles, their structures and typical applications are different.

A standard inductor generally consists of a single winding and is commonly used for energy storage, filtering, current smoothing, and impedance matching.

A common mode choke normally contains multiple windings wound around the same magnetic core. Its primary purpose is to attenuate common-mode interference while maintaining normal current flow.

The selection of either component depends on the circuit topology, operating frequency, current level, required inductance, and noise characteristics.

What Are Common Mode Chokes Used For?

Common mode chokes are found in many electronic and electrical systems, including:

• AC and DC power supplies

• Switching power supplies

• Industrial control equipment

• Automotive electronics

• Communication equipment

• Ethernet and data interfaces

• Consumer electronics

• Battery and power management systems

• Renewable energy equipment

For high-speed or sensitive electronic systems, properly designed common mode chokes can help improve electromagnetic compatibility and reduce unwanted conducted interference.

Important Common Mode Choke Parameters

When selecting a common mode choke, engineers typically consider several electrical and mechanical characteristics.

Rated Current

The rated current determines how much continuous current the component can carry without excessive temperature rise or performance degradation.

Common Mode Impedance

Higher impedance at the target noise frequency generally provides stronger attenuation of common-mode interference. However, impedance must be evaluated across the actual operating frequency range.

Inductance

The inductance of the windings affects the component's filtering behavior and should be matched to the circuit requirements.

DC Resistance

Lower winding resistance can help reduce power losses and voltage drop, which is particularly important in power applications.

Frequency Characteristics

A common mode choke does not behave as an ideal inductor across all frequencies. Core properties, winding structure, parasitic capacitance, and other design factors affect its high-frequency performance.

Why Core and Winding Design Matter

The magnetic core and winding configuration strongly influence common mode choke performance.

Ferrite materials are commonly used for high-frequency noise suppression because their magnetic properties can provide suitable impedance over a targeted frequency range. The number of turns, winding arrangement, wire size, core geometry, and coupling between windings also affect the final electrical characteristics.

For this reason, common mode choke design is not simply a matter of increasing inductance. The component needs to be optimized according to the application's current, frequency, EMI characteristics, and available installation space.

How to Choose the Right Common Mode Choke

The right common mode choke should be selected based on the actual operating conditions of the circuit. Start by identifying the noise frequency range and required attenuation. Then consider rated current, inductance, common-mode impedance, DC resistance, voltage rating, temperature requirements, and physical dimensions.

For high-frequency applications, parameters such as self resonant frequency (SRF) and parasitic effects may also become important. A component with suitable low-frequency inductance may not necessarily provide the desired impedance at higher frequencies.

Common Mode Chokes from Chikeung

Chikeung focuses on inductors and magnetic components for electronic applications, providing solutions for applications where reliable electromagnetic noise suppression and stable electrical performance are required.

When choosing a common mode choke, the electrical specifications should be matched carefully to the application's current, operating frequency, EMI requirements, and installation conditions.

Understanding how a common mode choke works is the first step toward selecting the right component. Engineers should evaluate the complete frequency and electrical characteristics rather than relying on inductance alone.
