How to Choose Between Single Station and Duplex Butterfly Winding Machines

If you're deciding between a Single Station Butterfly Winding Machine and a Duplex Butterfly Winding Machine, the choice mainly comes down to production volume: the single-station model suits R&D and small-batch runs, while the duplex model doubles output for mass production.

Quick Comparison

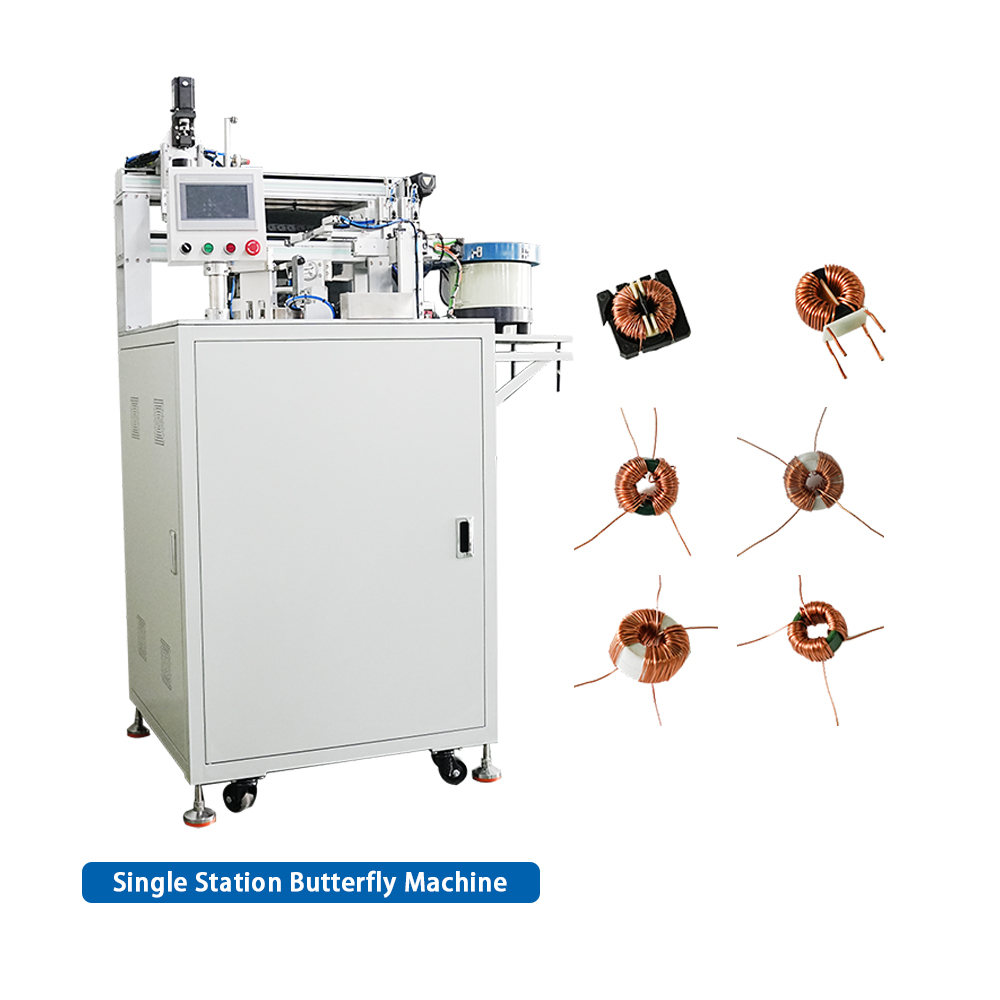

When to Choose the Single Station Butterfly Machine

The Single Station Butterfly Machine is built for flexibility. Its compact, single-station layout makes it easy for one operator to run, and it's well suited to R&D lines or production runs that switch between coil specifications often. If your priority is fast changeovers and precise winding on smaller batches rather than raw throughput, this is the better fit.

When to Choose the Duplex Butterfly Machine

The Duplex Butterfly Machine runs two independent winding stations on a single unit, allowing the same or different coils to be produced simultaneously. This effectively doubles capacity compared to a single-station setup, making it the stronger choice for mass production lines where output volume matters more than per-unit flexibility. Its winding error is controlled within ±0.005mm, supporting consistent quality even at higher speeds.

Shared Capabilities

Both machines share the same core technology: CNC-driven servo control, automatic tension adjustment, touchscreen HMI with multi-process storage, and modular components for easier maintenance. Both are used across communication equipment, automotive electronics, consumer electronics, and power equipment manufacturing — the difference is scale, not application range.

Not sure which fits your production line? Send us your target coil specifications and expected output volume, and we'll recommend the right configuration within 24 hours.
