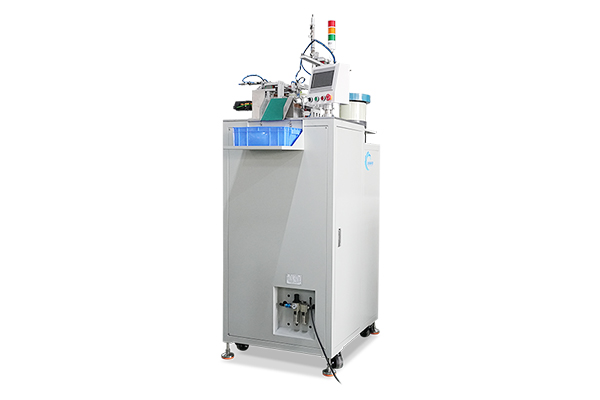

Maintenance Tips for Automatic Bobbin Winder Sewing Machines

Automatic Bobbin Winders are essential tools in the sewing process, streamlining production and improving efficiency by ensuring that bobbins are wound precisely and consistently. Like any piece of machinery, to keep your Automatic Bobbin Winder Sewing Machine operating at peak performance, regular maintenance is crucial. Proper care will not only extend the life of the machine but will also prevent unexpected downtime and costly repairs. Below is a practical guide on how to maintain and clean automatic bobbin winders, covering regular inspections, lubrication, and troubleshooting tips.

1. Regular Inspections

Why It's Important:Regular inspections are key to catching potential problems early, before they lead to machine malfunctions. When inspecting your automatic bobbin winder, focus on the following:

• Check the Winding Mechanism: Ensure the bobbin winder motor, spindle, and gear system are working smoothly. Any signs of wear, such as grinding noises or jerky movement, may indicate that components need lubrication or replacement.

• Examine the Bobbin Holder: Over time, the bobbin holder can accumulate dirt or become misaligned. Ensure the holder is clean and correctly positioned to avoid uneven winding.

• Inspect the Threading Mechanism: Check the tension disks and the thread guides for any lint or thread buildup. Even a small obstruction can cause the thread to slip or become tangled.

• Check Electrical Components: If your bobbin winder has electronic controls, inspect the wiring and buttons for any signs of wear or malfunction. A loose connection can result in erratic behavior or failure to start.

Frequency: Conduct a visual inspection before each use or after every several hours of operation, depending on your production schedule.

2. Cleaning the Bobbin Winder

Why It's Important:Cleaning prevents dust, lint, and thread buildup from affecting the machine's operation. A clean bobbin winder will perform more efficiently and reduce the chance of thread breaks or uneven winding.

• Clean the Spindle and Bobbin Holder: Use a soft cloth to wipe down the spindle, bobbin holder, and any exposed metal parts. For more stubborn dirt, use a small brush (such as a toothbrush) to dislodge debris from tight spaces.

• Remove Dust from Thread Guides and Tension Disks: Dust or lint in the thread guides and tension disks can lead to uneven thread tension, so it's essential to keep these areas clean. Use a can of compressed air to blow out dust or a small brush to remove debris.

• Clean the Motor and Gears: Over time, dust can accumulate inside the motor or gear mechanism. Be sure to gently clean any exposed parts, but avoid getting moisture near electrical components. If necessary, refer to the manufacturer’s instructions for cleaning the internal parts.

Frequency: Clean the machine after every 10–15 hours of operation or more frequently in environments with high dust or lint accumulation.

3. Lubrication

Why It's Important:Proper lubrication ensures smooth movement of parts, reduces friction, and prevents wear and tear on critical components. Lack of lubrication can cause the machine to overheat, run less efficiently, or fail prematurely.

• Lubricate the Spindle and Gears: Apply a small amount of machine oil or grease to the spindle, gears, and moving parts. This will allow the bobbin winder to operate smoothly and reduce the chances of parts becoming stuck or grinding.

• Check the Lubricant Type: Use only the lubricant recommended by the manufacturer to avoid damaging the machine or voiding the warranty. Some machines may require light machine oil, while others may need heavier greases.

• Avoid Over-Lubricating: Applying too much lubricant can lead to messy spills and attract dust and lint, which can then interfere with machine operation. Apply just enough to cover the moving parts lightly.

Frequency: Lubricate the machine every 100–200 hours of use, or as specified in the machine’s user manual. Make sure to clean and lubricate the machine after performing maintenance.

4. Troubleshooting Common Issues

While regular maintenance can prevent many issues, it’s essential to know how to troubleshoot common problems that might arise with your automatic bobbin winder.

Issue 1: Uneven Winding

• Cause: This can be caused by incorrect tension settings or a misaligned bobbin holder.

• Solution: Check the tension disks and ensure they are set correctly for the material you're working with. Re-align the bobbin holder if it’s not centered properly.

Issue 2: Thread Slippage

• Cause: Dust buildup, worn-out tension discs, or incorrect threading can cause thread slippage.

• Solution: Clean the threading mechanism, adjust the tension, and ensure the thread is properly threaded through all the guides.

Issue 3: Machine Stops Mid-Winding

• Cause: A worn-out or damaged motor, power supply issues, or a malfunctioning stop switch.

• Solution: Check the power cord and electrical connections for any loose or broken wires. If the motor is the issue, you may need professional assistance for repair or replacement.

Issue 4: Bobbin Winder Not Turning

• Cause: The gear mechanism could be jammed or clogged with debris.

• Solution: Turn off the machine, remove any thread buildup, and inspect the gears for any blockages. Clean the gears and reassemble the machine.

Issue 5: No Power to the Machine

• Cause: Faulty wiring, a broken power switch, or a tripped circuit.

• Solution: Check the power cord for any visible damage, ensure the plug is securely connected, and test the power switch. If the problem persists, consult a technician.

5. Calibration and Alignment

Why It's Important:Improper alignment or calibration can result in poor-quality winding, causing tension issues, inconsistent thread layers, or even damage to the machine. Regular calibration helps ensure your automatic bobbin winder is operating at its highest efficiency.

• Align the Spindle and Bobbin Holder: Make sure the spindle is centered properly and the bobbin holder is aligned to prevent irregular winding. Misalignment can cause uneven distribution of the thread, resulting in tangles or inconsistent bobbin tension.

• Check for Winding Consistency: After winding a few bobbins, check for consistency in the winding pattern. The bobbin should be evenly wound, with no gaps or overlaps. If the winding is uneven, the machine may need recalibration.

Frequency: Recalibrate the machine after any major maintenance or repair, or if you notice uneven winding during use.

Maintaining your automatic bobbin winder sewing machine is essential for ensuring its longevity, optimal performance, and efficiency. By following regular inspection, cleaning, lubrication, and troubleshooting procedures, you can prevent most common issues and minimize downtime. Remember, always refer to the manufacturer’s manual for specific maintenance guidelines, and when in doubt, consult a professional technician for more complex repairs. With proper care, your automatic bobbin winder will continue to serve you well, improving your sewing efficiency and output.
