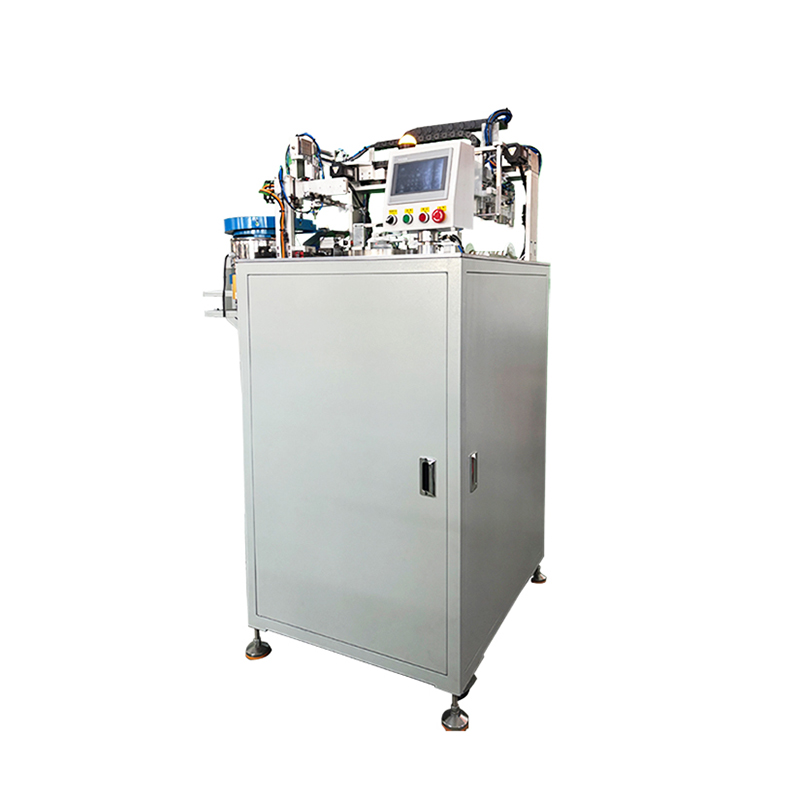

Maintaining a Motor Coil Winding Machine is critical to ensuring its long-term stable operation, extending its service life, reducing failure rates, and guaranteeing the quality of wound motor coils. Below is a systematic, step-by-step maintenance guide covering daily, weekly, monthly, and annual tasks, as well as key precautions for common components.
Daily checks focus on "quick inspections" to identify obvious abnormalities and prevent minor issues from escalating.
| Maintenance Item | Specific Operations | Purpose |
| Cleaning the Machine Surface | - Wipe the machine body, control panel, and wire guide components with a dry, lint-free cloth. - Remove dust, wire scraps, or oil stains from the winding head, wire tensioner, and clamping fixture. - Avoid using water or corrosive cleaning agents (e.g., alcohol for control panels). | Prevent dust accumulation from jamming moving parts; avoid short circuits caused by conductive debris. |
| Power & Electrical Connections | - Check if the power cord, plug, and terminal blocks are loose, cracked, or overheated (look for discoloration). - Ensure the emergency stop button, start/stop switches, and indicator lights work normally. | Eliminate electrical safety hazards (e.g., short circuits, electric shocks) and ensure operational responsiveness. |
| Wire Tension System | - Verify that the tension wheel rotates smoothly (no jamming or abnormal noise). - Check if the tension spring is intact (no deformation or breakage) and adjust the tension to the standard value for the current wire gauge. | Ensure uniform wire tension during winding, avoiding loose or stretched coils. |
| Clamping Fixture | - Inspect if the fixture clamps tightly (no slippage when simulating winding). - Clean the fixture’s contact surface to remove wire scraps or rust. | Prevent the coil bobbin from shifting during winding, ensuring accurate coil shape and turns. |
| Lubrication of Key Moving Parts | - Apply a small amount of high-temperature lithium-based grease to the winding spindle bearing and wire guide rail (if specified by the manufacturer). - Do not over-lubricate (excess grease attracts dust). | Reduce friction between moving parts, preventing wear and abnormal noise. |
Weekly maintenance goes deeper than daily checks, focusing on components that affect winding precision and mechanical stability.
Rotate the spindle manually to check for axial/radial play (excessive play indicates bearing wear).
Listen for abnormal noises (e.g., grinding, squeaking) when the spindle runs at low/high speeds—this may signal worn bearings or loose drive belts.
Tighten the spindle’s fixing bolts and check if the drive belt (if used) is tight (press the belt with a finger; deflection should be ≤5mm). Replace cracked or stretched belts immediately.
Disassemble the wire guide nozzle (if detachable) and clean internal residues (use a soft brush to avoid scratching the nozzle).
Check if the wire guide’s linear slide rail is smooth—wipe with a clean cloth and apply a thin layer of rail lubricant (e.g., silicone oil).
Verify that the wire guide’s position sensor (photoelectric or encoder) is aligned correctly (no misalignment due to vibration).
Calibrate the tension value: Use a tension meter to measure the actual wire tension and adjust the controller’s setting to match the standard (e.g., 500g for 0.5mm enameled wire).
Check if the tension brake pad is worn (if the tension fluctuates significantly, replace the pad).
For machines with a motor cooling fan: Clean the fan grille and blades to remove dust (blocked fans cause motor overheating).
For oil-cooled systems: Check the oil level (ensure it is between the "MIN" and "MAX" marks on the oil tank) and replace the oil filter if the pressure gauge shows abnormal readings.
Monthly maintenance focuses on precision calibration and inspection of hidden components to ensure the machine meets technical specifications.
Test the number of coil turns: Wind a sample coil and count the actual turns using a turn counter; adjust the machine’s encoder or PLC parameters if the error exceeds ±1 turn.
Check coil layer alignment: Wind a multi-layer coil and inspect if layers are evenly arranged (misalignment indicates the wire guide’s step distance needs adjustment).
Use a multimeter to test the insulation resistance of the main motor and control circuit (should be ≥10MΩ at 500V DC; low resistance indicates insulation aging).
Inspect the contactor and relay contacts for burning (if contacts are blackened, polish them with fine sandpaper or replace the component).
Back up the machine’s PLC program (store a copy on a USB drive) to prevent data loss due to power failure.
Check the accuracy of the clamping fixture’s centering: Use a dial indicator to measure the runout of the bobbin during rotation (runout should be ≤0.1mm; adjust the fixture’s alignment if exceeded).
Tighten all visible bolts (especially those on the winding head and frame) to prevent loosening caused by vibration.
Inspect the wire storage drum (if equipped) for deformation or cracks—replace it if it cannot maintain uniform wire release.
Annual maintenance is a full-system overhaul to replace aging parts and restore the machine’s performance to near-new levels.
Replace the winding spindle bearings (even if no obvious wear is found—bearings typically have a service life of 1–2 years).
Replace the tension spring, drive belt, and cooling fan (these are "consumables" prone to aging).
Replace the hydraulic oil (for hydraulic clamping systems) or lubricating oil (for gearboxes) and clean the oil tank.
Use a laser interferometer to test the positioning accuracy of the wire guide (error should be ≤0.02mm per 100mm travel).
Calibrate the machine’s load capacity: Run the machine at maximum load (e.g., winding a large-diameter bobbin) and check if the motor current stays within the rated range (no overload).
Update the PLC or HMI software to the latest version (provided by the manufacturer) to fix bugs and improve functionality.
Inspect the touchscreen for unresponsive areas—replace the screen if calibration fails.
Even with regular maintenance, faults may occur. Here are quick fixes for common issues:
| Fault Symptom | Possible Cause | Troubleshooting Steps |
| Winding tension fluctuates | 1. Tension spring is deformed. 2. Tension wheel is jammed by debris. 3. Tension controller is uncalibrated. | 1. Replace the tension spring. 2. Clean the tension wheel and bearing. 3. Recalibrate the tension controller with a tension meter. |
| Spindle makes abnormal noise | 1. Bearings are worn or lack lubrication. 2. Drive belt is loose or misaligned. 3. Spindle bolts are loose. | 1. Add grease or replace bearings. 2. Adjust belt tension or align the belt. 3. Tighten spindle bolts. |
| Coil turns are inaccurate | 1. Encoder is misaligned or faulty. 2. PLC program has errors. 3. Wire slippage on the tension wheel. | 1. Realign or replace the encoder. 2. Restore the backup PLC program. 3. Clean the tension wheel (remove oil/dust causing slippage). |
| Machine fails to start | 1. Power supply is cut off. 2. Emergency stop button is pressed. 3. Contactor is burned out. | 1. Check the power cord and socket. 2. Reset the emergency stop button. 3. Replace the contactor. |
Always disconnect the power supply before disassembling components (e.g., bearings, controllers) to avoid electric shock.
Use insulated tools when working on electrical parts; wear gloves when handling sharp components (e.g., wire guide nozzles).
Replace bearings, belts, or sensors with parts recommended by the machine manufacturer. Using inferior substitutes may cause premature failure (e.g., non-high-temperature bearings will overheat).
Keep a log of maintenance tasks (date, items checked, parts replaced, calibration values). This helps track the machine’s performance and identify recurring issues.
Ensure operators know basic maintenance (e.g., daily cleaning, tension checks) and do not modify machine parameters without authorization.
By following this maintenance schedule, you can maximize the reliability of your Motor Coil Winding Machine, reduce downtime, and ensure consistent coil quality. For complex faults (e.g., PLC failures), contact the manufacturer’s technical support instead of attempting unprofessional repairs.
