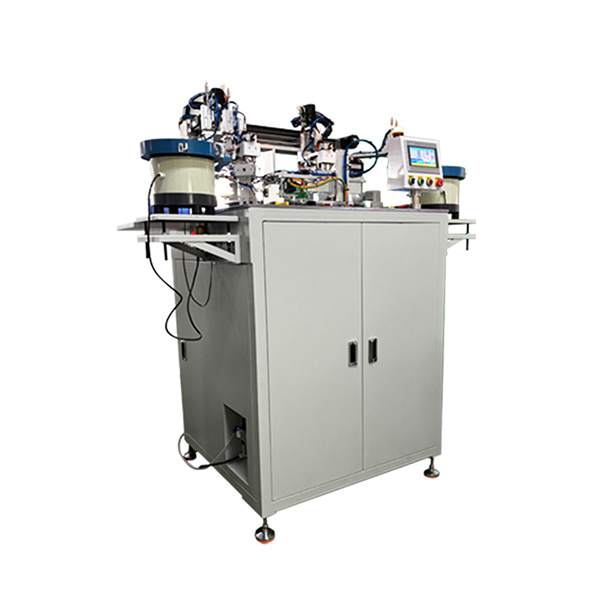

How Does A Toroidal Transformer Winding Machine Work?

The core working principle of a toroidal transformer Winding Machine is to drive the toroidal core to rotate and coordinate with the wire-feeding mechanism to wind the wire evenly and precisely around the core, forming the required primary and secondary coils.

Its working process can be broken down into four key stages, from preparation to completion, with each part collaborating closely.

Pre-Work Preparation: Parameter Setting & Fixture Installation

Before starting, the machine needs to be configured to match the production requirements, which is the basis for accurate winding.

Parameter Input: Operators input key parameters into the control system (usually PLC or touchscreen). These include the number of coil turns (primary/secondary), wire tension, winding speed, and whether insulation taping is needed (for integrated machines).

Core & Wire Installation:

Fix the toroidal core (made of silicon steel sheets) onto the fixture. The fixture clamps the core firmly to prevent displacement during rotation.

Thread the enameled wire (or other specified wires) through the wire storage ring (shuttle) of the machine head, and fix the wire end to the starting position of the toroidal core (usually via a small clamp or adhesive tape).

Core Rotation: The "Driving Force" of Winding

The rotation of the toroidal core is the core action that pulls the wire to wind around it.

The machine’s motor drives the spindle to rotate. The spindle is directly connected to the fixture that holds the core, so the core rotates synchronously with the spindle.

The rotation direction (clockwise/counterclockwise) and speed are controlled by the pre-set program. For example, small cores with thin wires may use high speeds (up to 1500 rpm), while large cores with thick wires use lower speeds (around 250 rpm) to ensure stability.

Wire Feeding & Positioning: Ensuring Even Winding

While the core rotates, the wire-feeding mechanism coordinates to ensure the wire is evenly distributed on the core, avoiding overlapping or gaps.

Wire Storage Ring (Shuttle) Movement: The wire storage ring (mounted on the machine head) moves slowly along the axial direction of the toroidal core as the core rotates. This movement ensures the wire is "laid" evenly on each layer of the core.

Constant Tension Control: High-end machines are equipped with a constant tension system (e.g., gear-rack or magnetic tensioners). This system maintains consistent tension on the wire during winding—too loose will cause messy turns, while too tight may break the wire or deform the core.

Turn Counting & Positioning: A fiber optic sensor or electronic counter real-time tracks the number of wire turns. When the count reaches the pre-set value, the machine automatically pauses or switches to the next coil (e.g., from primary to secondary).

Post-Winding Actions: Completion & Reset

After the winding of one coil (or all coils) is finished, the machine performs automatic or semi-automatic completion operations.

Wire Cutting & Fixing: The machine’s cutting mechanism cuts the wire, and the wire end is fixed to the core (e.g., via soldering or clamping) to prevent loosening.

Insulation Taping (Optional): For machines with integrated taping functions, after winding, the insulation tape head automatically winds insulation tape around the coil to isolate different windings or the coil from the core.

Machine Reset: The fixture releases the finished toroidal coil, and the wire storage ring and spindle return to their initial positions, waiting for the next core to be loaded and the cycle to restart.
