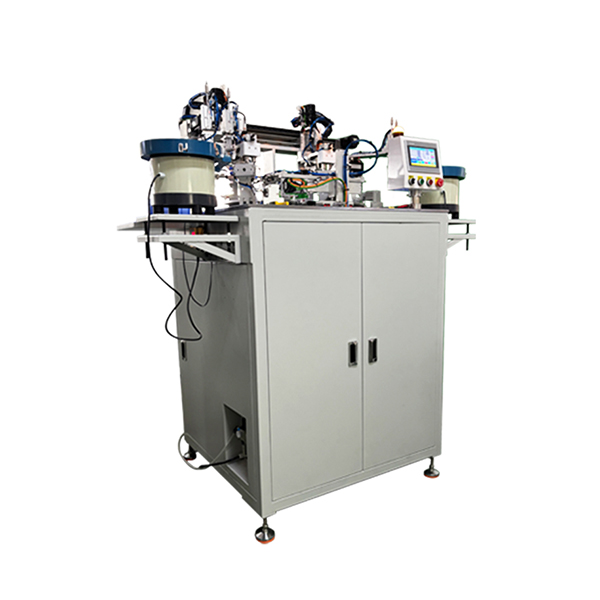

As a core automation equipment in the electronic component manufacturing industry, inductor coil Winding Machines have been deeply integrated into various fields driven by the rapid development of global high-tech industries such as new energy, consumer electronics, and industrial intelligence. Their application scenarios continue to expand, and the development prospects are broad, becoming a key link supporting the upgrading of the global manufacturing industry.
The global "dual carbon" strategy and the accelerated transformation of the transportation and energy sectors have made the new energy field the largest demand market for inductor Coil Winding Machines, with high growth potential and rigid demand characteristics.
In the new energy vehicle (NEV) industry, the rapid expansion of production capacity has directly driven the surge in demand for winding equipment. The drive motor, on-board charger (OBC), and DC-DC converter, which are core components of NEVs, rely heavily on high-precision coil windings. For example, the flat wire windings of drive motors, which are crucial for improving motor efficiency and power density, require specialized flat wire winding machines with high rigidity, high speed, and high precision. These machines must achieve precise control of wire arrangement spacing (error ≤±0.01mm) and winding tension to ensure the tight fit of flat wires and avoid insulation damage. According to data, global NEV production reached 16.3 million units in 2023, a year-on-year increase of 30.2%, and China's production alone accounted for 9.587 million units, a year-on-year increase of 35.8%. This explosive growth has made flat wire motor winding machines a "star product" in the market, with an average annual demand growth rate exceeding 40%. In addition, the inductive coils in OBCs and battery management systems (BMS) also require multi-layer dense winding technology, and multi-axis winding machines have become the preferred equipment due to their high efficiency.
In the photovoltaic (PV) and energy storage sectors, the continuous expansion of installed capacity has promoted the demand for winding machines. PV inverters need high-frequency inductive coils to improve power conversion efficiency, and these coils require winding machines to achieve low-loss and high-uniformity winding. With the global PV installed capacity expected to exceed 1TW by 2025, the demand for winding equipment in this field is growing at an annual rate of over 30%. Energy storage power stations, whether large-scale grid-connected energy storage or household energy storage systems, rely on energy storage converters (PCS) and inductive components in BMS. The winding of these components requires equipment to adapt to different wire diameters (0.05-2.0mm) and winding modes, and fully Automatic Winding Machines integrated with welding and testing functions are increasingly favored by manufacturers.
The consumer electronics industry is characterized by rapid iteration, miniaturization, and high integration, which puts forward extremely strict requirements for inductor coil winding machines—smaller size, higher precision, and faster speed.
Smartphones, tablets, and laptops are the core application scenarios. The power management modules, camera modules, and wireless charging coils of these devices require micro-inductive coils with ultra-small volume (size as small as 01005, i.e., 0.4mm×0.2mm) and high inductance density. To produce such coils, micro-winding machines with high-precision positioning systems (positioning accuracy ±0.001mm) and ultra-fine wire handling capabilities (wire diameter 0.01-0.1mm) are indispensable. For example, the wireless charging coils of smartphones adopt planar spiral winding technology, and dual-axis or four-axis T-Core winding machines can achieve synchronous winding of multiple coils, improving production efficiency by 100% compared with single-axis equipment. In addition, the inductive components in wearable devices such as smart watches and fitness trackers require winding machines to have stable tension control (tension error ≤±0.005N) to avoid wire breakage and ensure product reliability.
The popularity of emerging consumer electronics such as VR/AR devices and smart home appliances has further expanded the application boundaries of winding machines. The sensor modules and signal transmission modules of VR/AR devices require low-noise inductive coils, which need winding machines to optimize the winding trajectory through precise control to reduce electromagnetic interference. Smart home appliances such as air conditioners, refrigerators, and washing machines are developing towards energy conservation and intelligence, and the inductive coils in their frequency converters and control systems require high-efficiency winding equipment to reduce production costs while ensuring performance.
The industrial and power equipment field has a long-term demand for winding machines, focusing on stability, durability, and adaptability to large-scale components.
In general industrial fields, industrial control equipment (such as PLC, inverters), machine tool servo motors, and industrial robots are the main application scenarios. The transformers and inductive coils in industrial control equipment need to maintain stable performance in harsh working environments (high temperature, high humidity, strong vibration), so the winding machines used must have high structural stability and precise tension control. For example, the servo motors of CNC machine tools require windings with high insulation performance and uniform air gaps, and winding machines with online insulation detection functions can effectively avoid unqualified products. Industrial robots, especially collaborative robots, have high requirements for the miniaturization and light weight of joint motors, and the micro-coils in these motors need to be wound by high-precision wire arrangement winding machines to ensure the flexibility and accuracy of robot movement.
In the power equipment field, high-efficiency energy-saving power transformers, large-scale power transmission and transformation equipment, and electrical switchgear are the core demand sources. The coils of large power transformers have the characteristics of large size (diameter up to 1m), heavy weight, and multi-layer thick wire winding, which require special large-scale toroidal winding machines or box winding machines. These machines must have strong load-bearing capacity and precise layer-by-layer positioning capabilities to ensure the tightness and uniformity of the windings. With the global promotion of energy-saving policies, the output of high-efficiency energy-saving power transformers is growing at an annual rate of over 20%, and the demand for supporting large-scale winding machines is also increasing. In addition, the inductive coils in high-voltage switchgear require winding machines to adapt to special materials such as high-temperature-resistant wires, and the equipment's corrosion resistance and high-temperature resistance have become key indicators.
High-end special fields such as medical equipment, aerospace, and military industry have extremely high requirements for the reliability, stability, and environmental adaptability of inductive components, which promotes the development of high-end customized winding machines.
In the medical equipment field, diagnostic equipment such as ultrasound scanners, CT machines, and MRI machines, as well as therapeutic equipment such as hemodialysis machines, rely on high-performance inductive coils for power supply and signal transmission. These coils require low loss, low noise, and high biocompatibility (for coils in contact with the human body), so the winding machines used must have ultra-precise tension control (to avoid wire insulation damage) and clean production environments (to prevent dust pollution). For example, the high-frequency inductive coils in ultrasound probes need to be wound with ultra-fine wires (wire diameter 0.008-0.02mm), and the winding machines must be equipped with visual positioning systems to ensure the accuracy of the winding trajectory. The strict quality requirements in the medical field make high-end medical-grade winding machines have high profit margins, and the market is dominated by enterprises with core technologies.
In the aerospace and military fields, the inductive coils and windings used in aircraft avionics systems, satellite power supply modules, and missile guidance systems need to withstand extreme environments such as high temperature, low temperature, high pressure, and strong radiation. Therefore, the winding machines must adapt to special wires such as nickel-based alloy wires and ceramic-coated wires, and achieve high-density winding under strict environmental control. For example, the inductive components in satellite power systems require winding machines to have vacuum winding capabilities to avoid air bubbles in the windings, which may cause performance degradation in space. In addition, the military industry has high requirements for the confidentiality and reliability of equipment, and customized winding machines with independent intellectual property rights have become the development direction.
The global inductor coil winding machine market is showing a steady growth trend, driven by the demand from various downstream industries. According to market research data, the global CNC Winding Machine market size reached 12 billion US dollars in 2024, and is expected to maintain a compound annual growth rate (CAGR) of 5.2% from 2026 to 2033, reaching 18 billion US dollars by 2033. China, as the world's largest manufacturing base, has become the core market for winding machines. In 2024, the market size of China's winding machine industry exceeded 8.5 billion RMB (approximately 1.18 billion US dollars), and it is expected to surpass 14 billion RMB (approximately 1.95 billion US dollars) by 2030, accounting for more than 60% of the global market share.
Notably, the growth of the market is mainly driven by high-end equipment. Low-end winding machines with single functions and low precision are facing fierce price competition and market shrinkage due to homogeneous competition. In contrast, high-end products such as flat wire motor winding machines, micro-precision winding machines, and customized special winding machines have become the core growth points due to their high technical barriers and strong demand. Among them, flat wire winding machines for new energy vehicles have an average annual growth rate of over 40%, and micro-winding machines for consumer electronics have a growth rate of over 25%. With the continuous upgrading of downstream industries, the proportion of high-end equipment in the market will further increase, and the market concentration will gradually improve.
Technological innovation is the core driving force for the development of the inductor coil winding machine industry, and the future will show a development trend of deep integration of intelligence, integration, and digitization.
Intelligent upgrading is the key direction. In the future, winding machines will be integrated with artificial intelligence (AI) and machine learning technologies. For example, AI algorithms can optimize the winding trajectory in real time according to the wire diameter, material, and winding parameters, reducing wire loss by 10-15%; through computer vision technology, the automatic detection of coil defects (such as wire overlapping, loose winding, and insulation damage) can be realized, and the pass rate of products can be improved. In addition, digital twin technology will be widely used—by building a virtual model of the winding machine and the production process, the simulation and optimization of the winding process can be carried out before actual production, reducing debugging time by 30% and improving production efficiency.
Integration of multiple processes is another important trend. Traditional winding machines only complete the winding process, and subsequent processes such as welding, tin dipping, tape wrapping, and testing need to be completed by other equipment, resulting in low production efficiency and high labor costs. Future winding machines will develop towards multi-process integration, integrating winding, welding, tin dipping, insulation testing, and unloading into one. For example, the fully automatic inductor production line can realize the entire process from raw material feeding to finished product output, reducing the number of production lines by 50% and improving production efficiency by over 80%.
Digitization and networking are also indispensable. Winding machines will be equipped with industrial Internet of Things (IIoT) modules to realize real-time monitoring of equipment operating status (such as speed, tension, and temperature) and data collection. Manufacturers can remotely monitor equipment operation, predict potential failures, and provide timely maintenance through the cloud platform, reducing equipment downtime by 20-30%. In addition, the interconnection between winding machines and other equipment in the production line (such as SMT machines and testing equipment) will realize the digitization of the entire production process, helping enterprises achieve intelligent management.
In the global market, Japanese enterprises (such as Nittoku) and German enterprises have long occupied the high-end market of winding machines, relying on their advanced technology and stable quality. However, in recent years, with the support of national policies and the continuous improvement of independent research and development capabilities of domestic enterprises in China, the domestic replacement of China's winding machine industry has accelerated significantly.
Policy support provides a good development environment. China's "14th Five-Year Plan for Intelligent Manufacturing" and policies such as "New Quality Productivity" clearly support the development of the high-end equipment manufacturing industry, and provide financial subsidies, tax incentives, and R&D support for enterprises engaged in the research and development of core components of winding machines. For example, the national key R&D program has set up special projects for "high-precision winding equipment and core components", encouraging enterprises to break through key technologies such as high-precision servo systems and tension controllers.
Industrial synergy promotes technological innovation. Domestic winding machine enterprises have strengthened cooperation with downstream industries (such as new energy vehicle manufacturers and electronic component enterprises) to carry out joint R&D and customize equipment according to the specific needs of customers. At the same time, the cooperation between core component enterprises and complete machine manufacturers has been deepened. Domestic enterprises in servo motors, sensors, and CNC systems have continuously improved their product performance, providing strong support for the upgrading of winding machines. At present, the localization rate of core components of domestic mid-to-high-end winding machines has increased from less than 30% five years ago to more than 50%, and the gap with international advanced levels is gradually narrowing.
The export of domestic winding machines is also growing rapidly. With the advantages of cost performance and customized services, domestic products are exported to Southeast Asia, India, Europe, and South America. In 2024, the export volume of China's winding machines increased by 19.2% year-on-year, and high-end products such as flat wire winding machines have been recognized by international mainstream manufacturers. In the future, with the continuous improvement of product quality and brand influence, domestic winding machines will occupy a larger share in the global high-end market.
With the diversification of downstream application fields and the refinement of product requirements, the demand for customized winding machines is becoming increasingly prominent, and segmented scenario customization has become the core competitiveness of enterprises.
Different industries and even different enterprises have obvious differences in the requirements for winding machines. For example, the new energy vehicle industry needs winding machines that can adapt to flat wires of different cross-sections (rectangular, square) and high-speed winding (speed up to 2000rpm); the semiconductor industry requires micro-winding machines that can handle ultra-fine wires (wire diameter ≤0.01mm) and achieve ultra-precise positioning; the aerospace industry needs winding machines that can adapt to special materials (such as high-temperature-resistant alloy wires) and work in extreme environments (temperature range -50℃ to 200℃); the medical industry requires winding machines with clean production capabilities and high biocompatibility.
In response to these customized needs, winding machine enterprises are transforming from "equipment suppliers" to "solution providers". They deeply participate in the product design stage of downstream customers, understand their specific needs, and develop exclusive winding equipment and production processes. For example, some enterprises have developed special winding machines for hydrogen fuel cell bipolar plates, which can realize the precise winding of bipolar plate flow channels and improve the performance of fuel cells. Enterprises that can quickly respond to customized needs and provide high-quality solutions will gain a competitive advantage in the segmented market and achieve higher profit margins.
In the context of economic globalization, the inductor coil winding machine industry is showing a trend of global layout and deep integration of the industrial chain.
Domestic winding machine enterprises are actively expanding overseas markets. By setting up overseas branches, establishing local after-sales service centers, and participating in international exhibitions (such as Hannover Messe and Electronica), they are enhancing their brand influence and expanding their customer base. At the same time, enterprises are adapting to the technical standards and market needs of different countries and regions, and carrying out localized design and production to improve the competitiveness of products in the local market. For example, some enterprises have developed winding machines that meet the EU CE certification and the US UL certification, and have achieved bulk sales in European and American markets.
The synergy of the industrial chain is further deepened. Winding machine enterprises, downstream manufacturers, and upstream core component suppliers are forming a collaborative innovation ecosystem. Downstream manufacturers put forward demand for equipment performance and functions, guiding the R&D direction of winding machine enterprises; upstream core component suppliers provide technical support for winding machine enterprises to improve product performance; winding machine enterprises feed back the needs of downstream and upstream enterprises, promoting the common development of the entire industrial chain. For example, the cooperation between winding machine enterprises and new energy vehicle manufacturers has promoted the development of flat wire winding technology, and the cooperation between winding machine enterprises and servo motor manufacturers has improved the positioning accuracy and stability of equipment.
In addition, the integration of the industrial chain is also reflected in the extension of the industrial chain by enterprises. Some large winding machine enterprises have expanded their business to the production of inductive components, forming a "equipment + components" integrated business model, which not only improves the utilization rate of equipment but also enhances the stickiness with customers.
The inductor coil winding machine, as a key equipment supporting the development of high-tech industries, has a wide range of applications covering new energy, consumer electronics, industrial power, and high-end special fields. Driven by market demand and technological innovation, the industry is showing a good development trend of expanding market scale, upgrading technology, accelerating domestic replacement, highlighting customization needs, and deepening industrial chain synergy.
For enterprises in the industry, seizing the development opportunities in segmented fields, strengthening independent R&D and technological innovation, improving product quality and customization capabilities, and actively expanding the global market will be the key to achieving sustainable development. In the future, with the continuous progress of technology and the deep integration of the global industrial chain, the inductor coil winding machine industry will usher in a new development climax, making greater contributions to the upgrading and development of the global manufacturing
