How Does An Inductor Winding Machine Work?

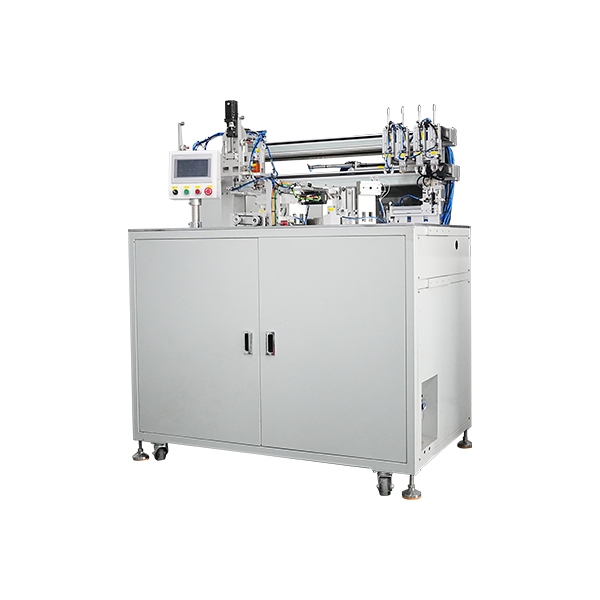

An inductor Winding Machine is a specialized piece of equipment designed to wind enameled wire (or other conductive wires) around a magnetic core, bobbin, or frame in a precise, repeatable manner to form inductors—components that store electrical energy in a magnetic field. Its operation combines mechanical motion, electrical control, and precision alignment to ensure consistent winding tightness, turn count, and wire arrangement. Below is a detailed breakdown of how it works, from setup to finished coil production:

1. Pre-Operation Setup: Defining Parameters & Preparing Materials

Before winding begins, operators configure the machine and prepare key components to match the inductor’s specifications:

Material Preparation: The core (e.g., ferrite, iron powder, air core) or bobbin (a plastic/metal frame that holds the wire) is mounted onto the machine’s spindle—this is the "base" around which the wire will be wound. The enameled wire (with insulation to prevent short circuits) is loaded onto a wire spool, which feeds the wire to the winding mechanism via a tensioner (to control wire tightness).

Parameter Programming: Using a control panel (digital or PLC-based), operators input critical specifications:

- Number of Turns: The exact number of wire loops required (e.g., 50 turns for a micro-inductor, 500 turns for a power inductor)—a key factor in determining the inductor’s inductance value (measured in henries, H).

- Winding Direction: Clockwise (CW) or counterclockwise (CCW), which affects the inductor’s polarity (important for circuits requiring phase alignment).

- Winding Pitch/Spacing: How tightly or spaced the wire turns are (e.g., dense winding for high inductance, spaced winding for heat dissipation).

- Layer Count: For inductors needing multiple layers of wire (common in high-power applications), the machine is set to switch layers automatically once a layer is complete.

- Tension Setting: Adjust the wire tensioner to ensure the wire is neither too loose (causing uneven winding) nor too tight (risking wire breakage or insulation damage).

2. Core Operation: Winding the Wire

Once setup is complete, the machine initiates the winding process through coordinated mechanical and electrical actions:

Spindle Rotation: The spindle (holding the core/bobbin) rotates at a controlled speed (adjustable based on wire thickness and winding precision). As it rotates, the wire is fed onto the core/bobbin from the wire spool.

Wire Guidance: A wire guide (often a small, movable pulley or nozzle) traverses horizontally along the length of the spindle. This guide ensures the wire is evenly distributed across the core/bobbin—preventing overlapping or gaps. For multi-layer winding, the guide adjusts its position vertically once a layer is full, starting the next layer directly above or below the previous one.

Turn Count Monitoring: The machine uses a sensor (e.g., optical encoder or Hall effect sensor) to track the spindle’s rotations. Each rotation equals one turn, and the control system counts these turns in real time. When the preset number of turns is reached, the spindle stops automatically.

Tension Control: The tensioner maintains consistent wire tightness throughout the process. Some advanced machines use closed-loop tension control—sensors detect tension fluctuations and adjust the tensioner dynamically to keep the wire stable.

3. Post-Winding Processes: Securing the Coil

After the required number of turns is complete, the machine (or operator, for semi-automatic models) performs steps to secure the coil and prepare it for use:

Wire Cutting: A built-in cutter trims the wire, separating the finished coil from the spool.

Termination (Lead Formation): The two ends of the wire (called "leads") are processed to connect the inductor to a circuit. This may involve:

- Stripping the enamel insulation from the lead ends (using a thermal stripper or mechanical blade) to expose the conductive metal.

- Bending the leads into a specific shape (e.g., straight, L-shaped) for easy soldering or insertion into PCBs.

- Attaching terminals (for large inductors) or soldering the leads directly to the bobbin’s contact pads.

Fixing the Coil: To prevent the wire from loosening during use, the coil is secured with adhesive tape, epoxy resin, or a heat-shrink tube. Some machines apply a small amount of adhesive automatically as the final layer is wound.

4. Quality Control (Optional for Advanced Machines)

High-precision Inductor Winding Machines may include built-in quality checks to ensure the coil meets specifications:

Inductance Testing: A test probe measures the inductor’s inductance value and compares it to the target. If the value is outside the acceptable range, the machine flags the coil as defective.

Turn Count Verification: Secondary sensors confirm the exact number of turns to avoid human error in programming.

Winding Uniformity Inspection: Cameras or optical sensors check for gaps, overlaps, or loose turns—rejecting coils that fail visual or dimensional standards.

5. Automation & Advanced Features (for Industrial-Grade Machines)

Modern industrial Inductor Winding Machines often integrate automation to boost efficiency and precision:

Full Automation: Load/unload cores/bobbins automatically (via robotic arms), wind, terminate, and test coils without human intervention—ideal for mass production (e.g., consumer electronics or automotive components).

Program Storage: Save winding parameters for common inductor models, allowing quick setup for repeat orders.

Variable Speed Control: Adjust spindle speed based on wire thickness (thicker wire requires slower speeds to avoid breakage) or winding density.

Anti-Overlap Technology: Advanced wire guides use algorithms to predict winding patterns, ensuring perfect layer alignment even at high speeds.

Key Variations by Machine Type

The basic working principle applies to most inductor Winding Machines, but specialized models adapt to different inductor sizes and use cases:

Manual/Semi-Automatic Machines: Used for small-batch production or large, custom inductors. Operators handle setup, wire feeding, and termination, while the machine controls spindle rotation and turn count.

Automatic High-Speed Machines: Designed for mass-produced micro-inductors (e.g., in smartphones or TWS earbuds). These machines operate at speeds of up to 10,000 turns per minute and integrate full termination and testing.

Toroidal Winding Machines: For toroidal inductors (doughnut-shaped cores). The wire is fed through the center of the toroid, and the core rotates around the wire—requiring specialized guidance to ensure even winding around the curved surface.

Summary

At its core, an inductor winding machine works by converting programmed parameters into precise mechanical motion: rotating the core/bobbin, guiding the wire evenly, counting turns, and securing the coil. Its ability to maintain consistency in turn count, tension, and winding pattern is critical—since even small deviations can affect the inductor’s inductance, resistance, and reliability. From consumer electronics to aerospace, this process enables the mass production of inductors tailored to the unique needs of each industry.
