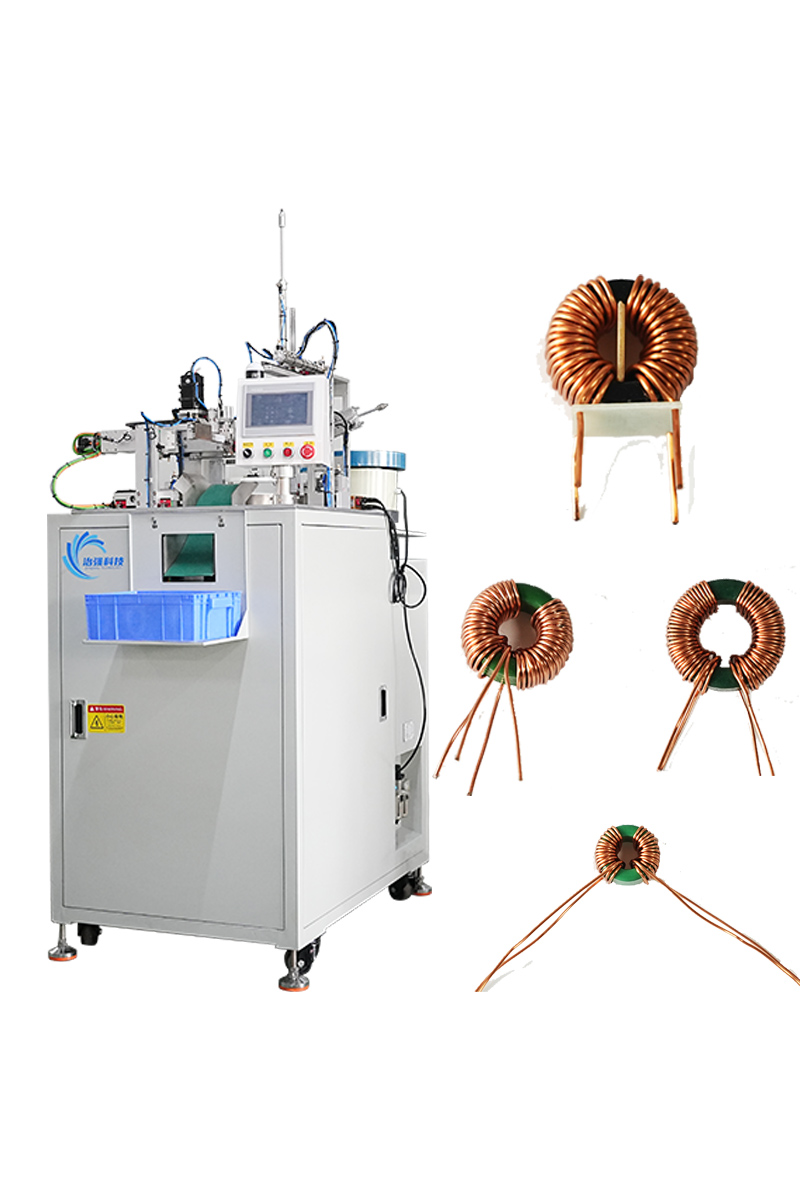

The Auto Coil Winding Machine is a high-speed, fully automated system designed for precise coil production. Ideal for a wide range of applications, it ensures consistent quality, reduces labor costs, and boosts productivity. Features include programmable controls, automatic wire feeding, and precise tension control.
Looking for high-performance, reliable Coil Winding Machines? Our range of Automatic Coil Winding Machines provides the perfect solution for industries requiring precise and efficient coil production. Whether you're in motor manufacturing, transformers, or electronic components, we offer Flexible Coil Winding Solutions tailored to meet your needs.
1.High-Speed Production: Maximize throughput with our Automatic Winding Equipment designed to deliver consistent, high-speed results without compromising precision.
2.Versatile Applications: Whether it's motor coil winding, transformer coil production, or winding for inductors and other electronic components, our Coil Winding Machines can be adapted to suit a wide range of industrial applications.
3.Advanced Control Systems: Our Automatic Wire Winding Machines come equipped with state-of-the-art control systems that offer precise tension control, wire feeding, and winding parameters for high-quality production.
4.Durability & Reliability: Built for continuous operation, our machines ensure long-lasting performance and minimal downtime, helping you reduce maintenance costs and increase efficiency.

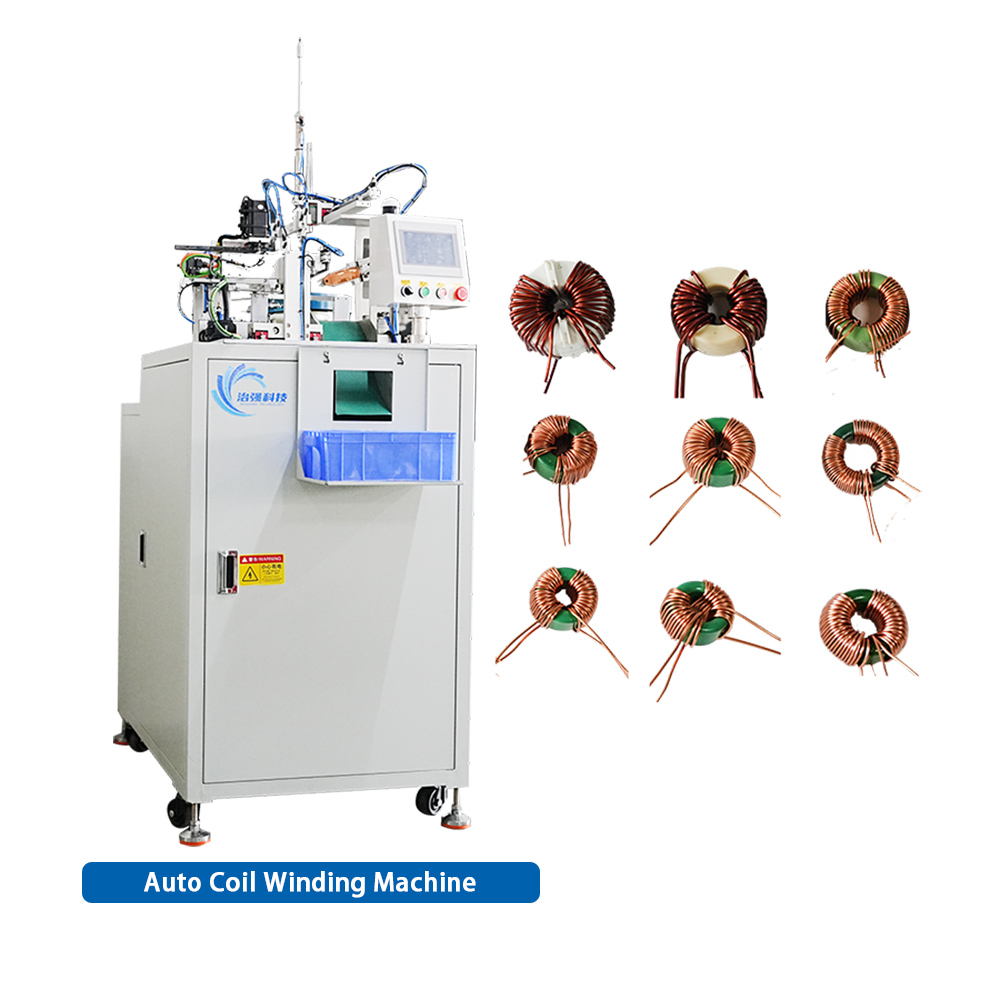

Auto Coil Winding Machine:
| Parameter | Specification |
|---|---|
| Winding Speed | Up to 2000 RPM (depending on wire type and size) |
| Wire Diameter Range | 0.05 mm to 3 mm |
| Coil Diameter Range | 20 mm to 200 mm |
| Max Coil Length | 2000 mm (adjustable based on requirements) |
| Power Supply | AC 220V / 50Hz or custom voltage options |
| Control System | PLC + Touch Screen for easy programming |
| Tension Control | Automatic, adjustable (0.5 - 10 N) |
| Wire Feeding System | Automatic wire feeding with tension monitoring |
| Winding Mode | Multi-layer, Single-layer, and Customizable modes |
| Cycle Time | Adjustable based on winding parameters |
| Safety Features | Emergency stop, overload protection |
| Material Compatibility | Copper, Aluminum, and other wire materials |
| Machine Dimensions | 800 mm x 600 mm x 1500 mm |
| Weight | Approx. 300 kg (varies with model) |
| Certification | CE, UL, RoHS (depending on region) |
1.Fully Automated Processes: Reduce manual labor and improve coil winding precision.
2.Customizable Settings: Adjust speed, tension, and wire feeding parameters for optimal results.
3.Energy-Efficient: Designed to reduce power consumption while maintaining high output.
4.User-Friendly Interface: Easy-to-use controls allow for simple operation and quick adjustments.
Our Automatic Coil Winding Machine is designed for high-speed and precise winding. It reduces labor costs by fully automating the process, ensuring top-quality coils with minimal manual intervention. Ideal for mass production, it provides consistent performance, improving overall productivity.
This machine is optimized for motor coil winding. It offers precise, consistent coils, enhancing motor performance and reliability. The design ensures quick changeovers, reduces material waste, and supports both small and large production volumes, making it perfect for motor manufacturing.
The Automatic Wire Winding Machine provides energy-efficient solutions for winding wire into coils. With programmable controls and automatic wire feeding, it guarantees consistent coil quality. It’s versatile for various applications, from transformers to inductors, and adjustable for different wire types.
Designed for high-precision wire winding, this machine excels in creating coils for inductors, transformers, and electronic components. It ensures uniformity and quality across a wide range of wire materials and gauges, offering easy setup, adjustable speed, and reliable performance for consistent results.
The Motor Coil Winding Machine specializes in motor coil production. It’s perfect for high-speed, high-precision winding, ensuring coils are produced with excellent consistency. Capable of handling various motor coil specifications, it optimizes motor manufacturing processes and improves product quality.
Our Flexible Coil Winding Solutions are adaptable to unique coil requirements. With adjustable settings for tension, speed, and wire type, these machines cater to diverse applications like transformers and motors. They offer customization, providing precision and versatility for small and large-scale production.
Our Coil Winding Machines are perfect for a variety of industries, including:
1.Motor Manufacturing: Create precision coils for electric motors with high consistency.
2.Transformer Production: Wind coils for transformers and inductors with accuracy and efficiency.
3.Electronics: Ideal for winding coils for inductive components, sensors, and other electronic devices.
Browse our selection of Coil Winding Machines designed for high-speed, high-precision coil production. Whether you need a motor coil winding machine or a versatile wire winding machine, we provide the best solutions for your manufacturing needs. Request a quote or contact us for more information on how we can help streamline your production process.
