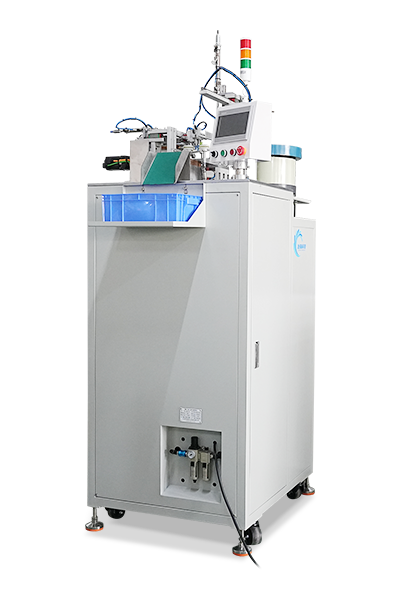

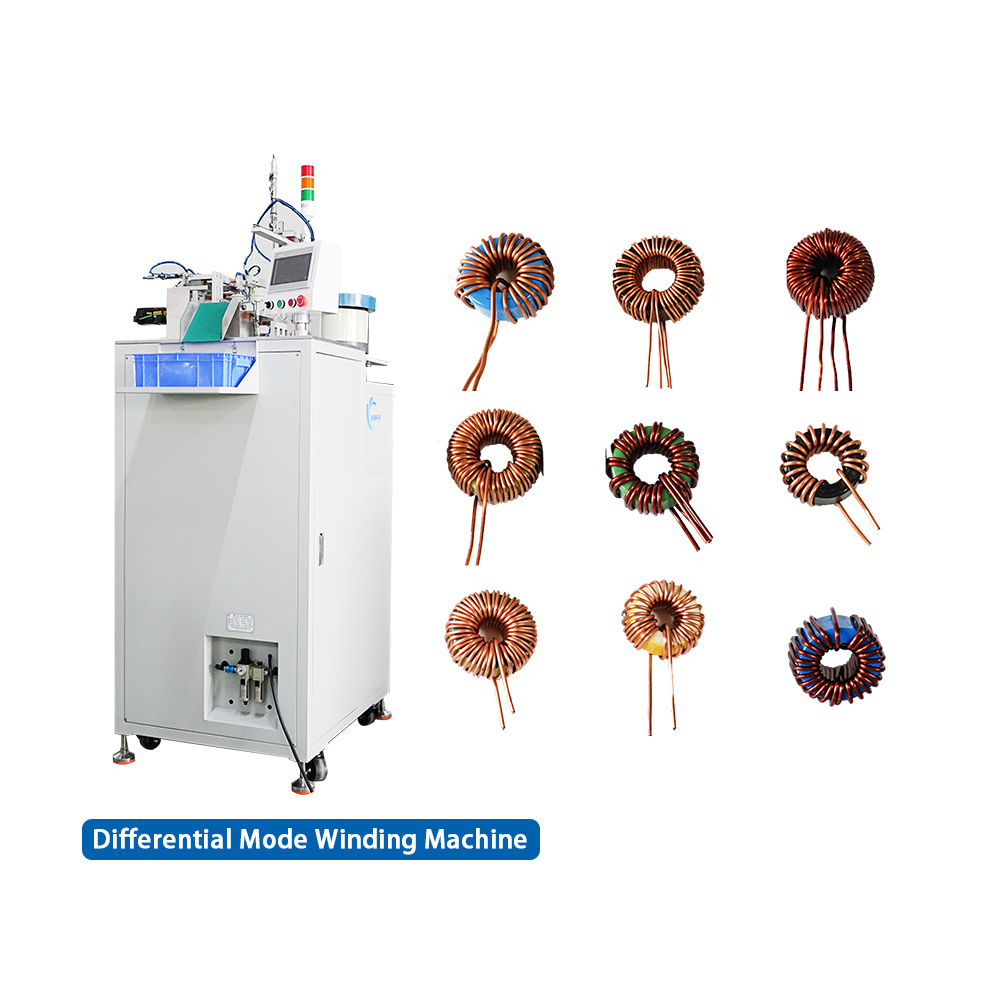

Differential Mode Winding Machine (DMC) is a kind of automated equipment designed for winding differential mode coils, transformers, inductors and other electronic components, which are widely used in many industries such as power electronics, communications, automotive electronics, household appliances, etc. The core function of DMC is to ensure the generation of opposite current on two opposing conductors through precise dual wire winding. The core function of the Differential Mode Winding Machine is to ensure the generation of currents in opposite directions on two opposite conductors through precise double-wire winding, which effectively reduces the differential mode noise and improves the efficiency and signal quality of electronic devices.
Differential Mode Winding Machine is a high-precision and high-efficiency automated Winding Machine, which is mainly used for winding single-layer thick wire differential mode inductors. It is able to realize automatic winding, arranging and fixing of coils through precise control system and winding mechanism, thus greatly improving production efficiency and product quality.
Main Features
1. Advanced control system: The Differential Mode Winding Machine is equipped with a high-precision control system, which adopts advanced algorithms and sensor technology, capable of monitoring and adjusting various parameters in the winding process in real time, such as wire diameter, number of turns, winding speed, etc., to ensure the uniformity and consistency of the coils.
2. Precise mechanical structure: The mechanical structure of Winding Machine is precisely designed and manufactured with high-quality materials and processes to ensure the stability and precision of the winding mechanism. This helps to reduce errors and deviations in the winding process and improve the performance of the inductors.
3. Automatic Winding: Differential Mode Winding Machine is able to complete the coil winding process automatically without manual intervention. This greatly improves productivity and reduces labor costs.
4. Automatic Alignment and Fixing: The Winding Machine is also equipped with the function of automatic alignment and fixing of coils, which ensures that the position and shape of the coils meet the requirements after the winding process is completed. This helps to reduce subsequent manual finishing work and improve product quality.
5. Flexible Parameter Setting: The control system of the Coil Winding Machine allows the user to set flexible parameters such as wire diameter, number of turns, winding speed, etc. according to the requirements of the coil. This helps to ensure the accuracy and consistency of the coils to meet the needs of various application scenarios.
6. Friendly User Interface: The operation interface of Coil Winding Machine is simple and straightforward, easy to learn and master. Users can get started with simple training, which reduces the difficulty and cost of operation.
7. Intuitive monitoring and alarm system: The equipment is equipped with an intuitive monitoring and alarm system, which can monitor the operating status of the equipment and the winding of coils in real time. Once an abnormal situation occurs, the system will immediately send an alarm signal to remind the user to deal with it in time.
8. Energy saving and environmental protection: CNC Winding Machine adopts advanced energy-saving technology and materials, which can reduce energy consumption and minimize the impact on the environment. At the same time, the noise level of the equipment is also low and will not cause discomfort to the operator.
9. High Reliability and Stability: The control system and mechanical structure of CNC Winding Machine have been rigorously tested and verified for high reliability and stability. This ensures the stability and reliability of the equipment over a long period of time, reducing the failure rate and maintenance costs.
Application Areas
1. Electronics: In the field of electronics, Automatic Winding Machine is mainly used to manufacture various kinds of inductors, such as power inductors, signal inductors, etc. These inductors are indispensable in electronic equipment. These inductors are indispensable components in electronic equipment, used for energy storage, filtering, stabilizing current and voltage, etc. Automatic Winding Machine's high-precision winding and automated production characteristics can meet the demand for high-quality and high-efficiency production of inductors in the electronics field.
2. Communication field: In the field of communication, Automatic Winding Machine also plays an important role. Communication equipment requires a large number of inductors to stabilize signals, filter noise, etc. Automatic Winding Machine can produce inductors that meet the requirements of communication to ensure the stability and reliability of communication equipment. At the same time, Automatic Winding Machine's automated production characteristics also help to improve the production efficiency of communication equipment and reduce production costs.
3. Automotive field: With the increasing degree of automotive electronics, Coil Winding Machine is more and more widely used in the automotive field. Coil Winding Machine is able to produce inductors that meet the requirements of automotive electronic equipment, ensuring the stability and safety of automobiles.
4. Medical field: In the medical field, Coil Winding Machine also has certain applications. Many electronic components in medical equipment, such as electrocardiographs, sphygmomanometers, blood glucose meters, etc., need inductors to stabilize the current and voltage, and the Coil Winding Machine is able to produce inductors that meet the requirements of medical equipment to ensure the accuracy and reliability of medical equipment.
Maintenance and upkeep
1. Regular Inspection: Regularly inspect and maintain each component of the Coil Winding Machine to ensure the normal operation of the equipment.
2. Cleaning and Maintenance: Keep the Coil Winding Machine clean and dry to avoid dust and moisture damage to the equipment.
3. Lubrication Maintenance: Lubricate and maintain the sliding parts of the Winding Machine to reduce wear and friction.
4. Professional Maintenance: If the Winding Machine is malfunctioned or damaged, it should be repaired and replaced by professional personnel.
FAQ
What is a Differential Mode Winding Machine?
Differential Mode Winding Machine is a specialized equipment for winding differential mode inductors with high precision winding and automated production.
What are the main applications of Differential Mode Winding Machine?
Differential Mode Winding Machine is mainly used in the field of electronics, communications, automotive, medical and other areas for the production of various types of differential mode inductors.
What are the main features of Differential Mode Winding Machine?
Differential Mode Winding Machine is characterized by high precision winding, high automation, high adaptability, easy operation as well as energy saving and high reliability.
How to operate the Differential Mode Winding Machine?
To operate a Differential Mode Winding Machine, you need to understand the interface and functions of the machine, and follow the instruction manual to operate the machine. This usually includes setting parameters, starting the winding process, and monitoring the winding process.
How does the Differential Mode Winding Machine ensure the uniformity and consistency of the coils during the winding process?
The Differential Mode Winding Machine monitors and adjusts various parameters during the winding process, such as wire diameter, number of turns, winding speed, etc., in real time through the advanced control system and precise mechanical structure to ensure the uniformity and consistency of the coils.
| Scope of processing | |
| Name of Magnetic Ring | Specification |
| Ring outer diameter | 16~40MM |
| Wire Diameter | 0.7~2.0MM |
| Wire length | Within 120MM |
| Efficiency | 0.8~3S/turn |
| Winding method | Can be rewound |
| Layers | 1~3 layers |
| Bore | Subject to the smooth passage of the crochet hook with full yarn. |
| special specification | These processing range does not mean that all products can be wound, equipment debugging after high stability, daily crop rate > 95%,the whole machine warranty of one year, the solenoid valve lifetime warranty. |
A Differential Mode Winding Machine is a specialized machine used for winding various types of wire coils, typically in transformers, inductors, and motors. It allows for precise control over the winding process, providing different speeds and tensions for each section of the coil.
The main advantages include precise tension control, high accuracy in wire placement, the ability to handle complex winding patterns, and consistent quality. It also helps reduce material waste and improve production efficiency.
The machine works by controlling two or more spindles independently, allowing different layers of wire to be wound at different speeds or tensions. This flexibility ensures that the final coil meets specific design requirements.
Differential Mode Winding Machines are commonly used in industries like electronics, automotive, aerospace, telecommunications, and electrical engineering, where components like transformers, inductors, and motors are produced.
These machines can produce a variety of coils, including toroidal coils, solenoid coils, multilayer coils, and bobbin-wound coils. They are ideal for both simple and complex winding patterns.
Tension control is critical in winding machines because it ensures that the wire is wound uniformly and securely onto the coil. The differential mode allows for precise adjustment of tension during different stages of the winding process, which prevents wire breakage or deformation.
Yes, most Differential Mode Winding Machines are designed to handle a wide range of wire gauges, from very fine wires used in micro-electronic components to thicker wires used in heavy-duty transformers or motors.
The primary difference lies in control and precision. Differential Mode Winding Machines provide independent control over each spindle's speed and tension, allowing for more complex winding patterns and greater accuracy compared to conventional winding machines, which may only offer uniform control across all spindles.
By offering better control over the winding process, these machines reduce the likelihood of errors, material waste, and rework. They can also automate complex winding tasks, allowing for faster production times without compromising quality.
Regular maintenance includes checking and calibrating tension controls, lubricating moving parts, cleaning the machine to prevent dust and debris from interfering with the winding process, and ensuring that software (if applicable) is updated for optimal performance.
