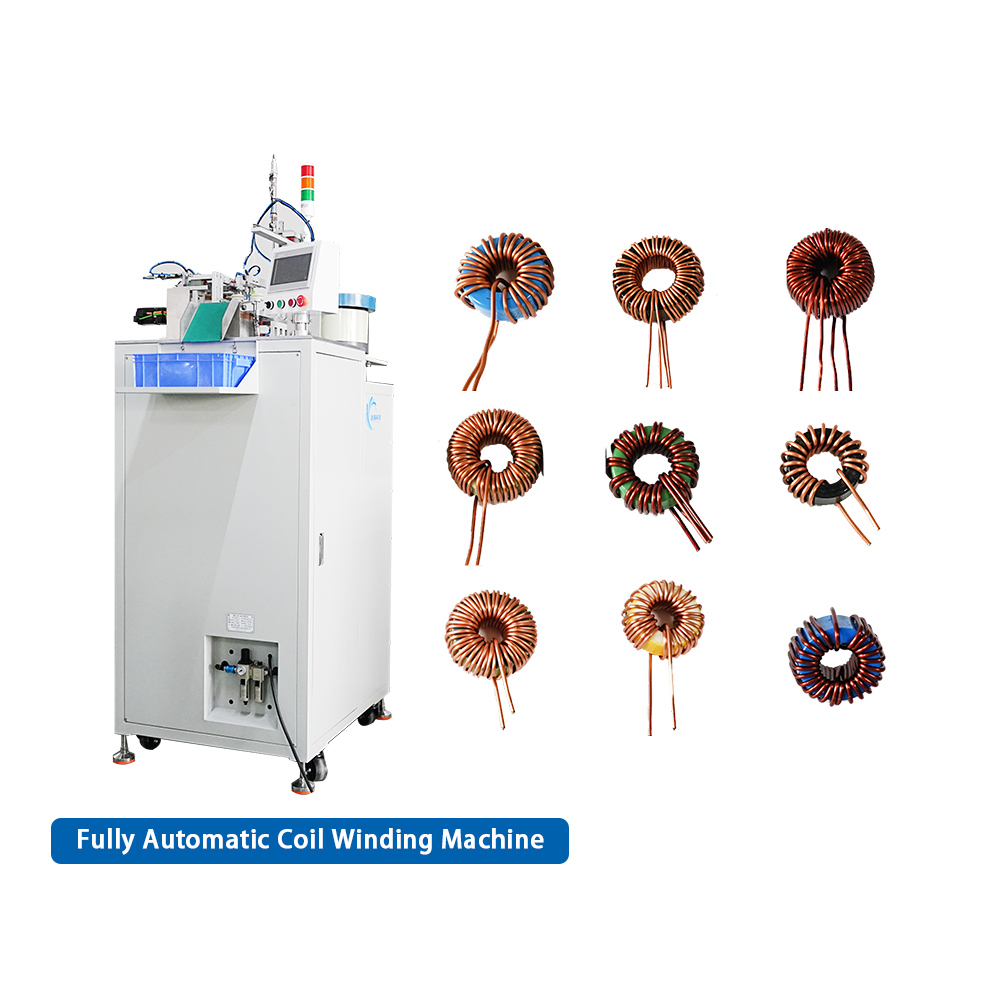

Fully Automatic Coil Winding Machine

The Fully Automatic Coil Winding Machine is a cutting-edge, high-efficiency solution designed for precise, high-speed winding of coils. As a Coil Winding Machine Manufacturer, we offer a machine that significantly enhances productivity, reduces manual labor, and ensures consistent quality. This Fully Automatic Winding Machine is ideal for industries requiring high-precision coil production, such as electrical, automotive, telecommunications, and renewable energy sectors.

Key Features

1.High-Speed Operation:

• The Fully Automatic Coil Winding Machine is engineered for high-speed winding, delivering impressive throughput without compromising on quality. This feature is particularly valuable in large-scale production environments where time efficiency is critical.

2.Advanced PLC Control System:

• Featuring a programmable logic control (PLC) system, this machine allows for easy operation and seamless integration into existing production lines. Operators can program and adjust winding parameters with ease, ensuring optimal performance for various coil types and sizes.

3.Automatic Wire Feeding:

• The machine incorporates an automatic wire feeding system, ensuring a continuous supply of wire to the winding head. This minimizes downtime associated with manual reloading, increasing production efficiency and uptime.

4.Precise Tension Control:

• With its advanced tension control mechanism, the Automatic Coil Winding Machine ensures that each coil is wound under constant tension, which is crucial for preventing wire breakage and ensuring uniformity and quality in the final product.

5.Multi-Functionality:

• This Fully Automatic Winding Machine is designed to handle a wide range of coil shapes and sizes, including flat coils, cylindrical coils, and more. It is versatile enough to accommodate various applications, from inductors and transformers to solenoids and electromagnetic coils.

6.360° Rotating Spindle (Optional):

• Some models of the Fully Automatic Coil Winding Machine feature a 360° rotating spindle, allowing the winding head to operate from any angle. This ensures ease of use, especially when working with complex coil shapes or varying socket configurations.

7.Error Detection & Protection:

• The Automatic Coil Winding Machine is equipped with a built-in error detection system that automatically halts operation when issues like wire breakage, misalignment, or tension inconsistencies occur. This reduces the risk of defects and minimizes downtime.

8.Automatic Cutting and Splicing:

• After the winding process is complete, the machine automatically cuts and splices the wire, creating a clean, precise coil ready for the next stage of production or use. This feature streamlines the workflow and eliminates the need for manual intervention.

9.Energy Efficiency:

• Designed with an energy-efficient system, the Fully Automatic Winding Machine optimizes power usage, reducing operational costs while maintaining high performance. This makes it an eco-friendly and cost-effective solution for high-volume coil production.

10.User-Friendly Interface:

• The machine’s intuitive interface and digital display allow operators to easily monitor and adjust winding settings. Multiple preset programs can be saved for different coil specifications, ensuring quick setup times between production runs.

Fully Automatic Coil Winding Machine Product Specifications

Benefits

1.Increased Productivity:

• By automating the winding process, the Automatic Coil Winding Machine boosts productivity, allowing manufacturers to produce more coils in less time, meeting the demands of high-volume production.

2.Consistent Coil Quality:

• The Fully Automatic Winding Machine ensures precise, uniform coil winding with consistent tension and speed, resulting in high-quality coils that meet strict industry standards.

3.Reduced Labor Costs:

• Automation reduces the need for manual intervention, cutting labor costs and minimizing human error. Operators can focus on monitoring the machine, increasing operational efficiency.

4.Low Material Waste:

• The precise control over wire tension and winding speed helps minimize material wastage, ensuring that coils are produced optimally and reducing scrap.

5.Flexible and Customizable:

• This machine is highly adaptable and can be customized for various coil types and specifications. Whether you’re manufacturing coils for motors, transformers, or inductors, the Automatic Coil Winding Machine can handle it all.

6.Improved Safety:

• Safety features such as emergency stop buttons, protective covers, and sensors ensure that the machine operates safely and minimizes the risk of accidents during production.

7.High Return on Investment (ROI):

• The Fully Automatic Winding Machine offers excellent ROI by increasing productivity, reducing material waste, and lowering labor costs, making it a valuable addition to any manufacturing operation.

8.Versatility in Applications:

• Whether you need to produce coils for the automotive industry, consumer electronics, telecommunications, or energy sectors, the Fully Automatic Coil Winding Machine provides the flexibility and reliability required to meet diverse production needs.

Applications

The Fully Automatic Coil Winding Machine is a critical tool for industries that rely on high-quality, precision coils. It is widely used in:

1.Electrical Industry: Manufacturing coils for motors, transformers, and solenoids.

2.Automotive Industry: Producing electromagnetic coils and other automotive components.

3.Telecommunications: Winding coils for inductors and transformers used in communication systems.

4.Consumer Electronics: Producing coils for devices like speakers, power supplies, and more.

5.Renewable Energy: Manufacturing coils for generators and transformers used in wind and solar energy systems.

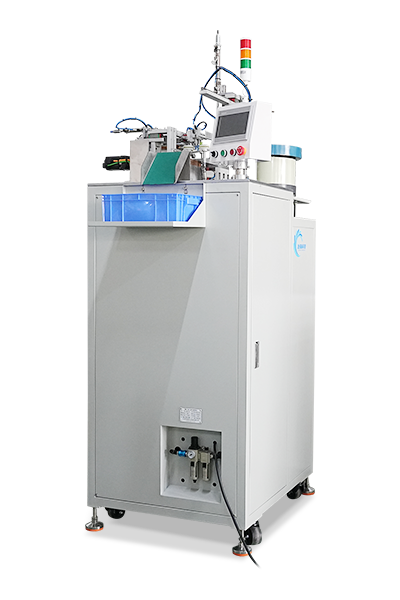

Fully Automatic Coil Winding Machine

Discover the efficiency and precision of our Fully Automatic Coil Winding Machine. Designed for high-speed coil production, it offers automatic wire feeding, tension control, and customizable winding options for various industries.

Automatic Coil Winding Machine

Enhance your coil production with our Automatic Coil Winding Machine. This high-performance machine offers reliable wire feeding, programmable control, and adjustable winding speeds, ideal for electronics, automotive, and more.

Fully Automatic Winding Machine

Maximize productivity with our Fully Automatic Winding Machine. Offering seamless wire feeding, precise tension control, and high-speed winding capabilities, it’s perfect for high-volume manufacturing in a range of industries.

Coil Winding Machine Manufacturer

As a leading Coil Winding Machine Manufacturer, we provide high-quality, fully automated winding machines tailored to your production needs. Our machines ensure precision, high efficiency, and reduced operational costs for various applications.

FAQ

1. What is a Fully Automatic Coil Winding Machine?

A Fully Automatic Coil Winding Machine is a highly efficient, automated piece of equipment designed to wind wire onto spools or bobbins. It offers automatic wire feeding, precise tension control, and high-speed operation, making it ideal for mass production of coils in various industries.

2. What industries can benefit from using a Fully Automatic Coil Winding Machine?

Industries such as electronics, automotive, telecommunications, renewable energy, and electrical manufacturing can benefit from the high precision, speed, and efficiency provided by the Fully Automatic Coil Winding Machine.

3. How does the Fully Automatic Coil Winding Machine ensure precision?

The machine uses advanced tension control systems, PLC (programmable logic control), and sensors to maintain consistent wire tension and winding speed, ensuring precise and uniform coil production every time.

4. What types of coils can be wound with this machine?

The Fully Automatic Coil Winding Machine is versatile and can wind a wide range of coil types, including inductors, transformers, motors, solenoids, and electromagnetic coils, as well as flat coils, cylindrical coils, and multi-layer coils.

5. What is the maximum wire diameter supported by the Fully Automatic Coil Winding Machine?

The machine can support wire diameters ranging from 0.1 mm to 4 mm, making it suitable for a variety of wire materials including copper, aluminum, and enameled wires.

6. Can the machine handle different coil sizes?

Yes, the Fully Automatic Coil Winding Machine can handle a wide range of coil sizes, with inner diameters ranging from 10 mm to 150 mm, outer diameters from 30 mm to 300 mm, and coil heights from 10 mm to 200 mm.

7. How fast can the Fully Automatic Coil Winding Machine wind coils?

The machine has an adjustable winding speed, typically ranging from 20 to 300 RPM, allowing for flexibility depending on the type and size of the coil being produced.

8. Is the Fully Automatic Coil Winding Machine energy-efficient?

Yes, the Fully Automatic Coil Winding Machine is designed to be energy-efficient, minimizing power consumption while maintaining high performance, which helps reduce operating costs over time.

9. How easy is it to operate the Fully Automatic Coil Winding Machine?

The machine features an easy-to-use interface, typically controlled by a PLC system with a touchscreen display, allowing operators to quickly set parameters and monitor the winding process. The system can be customized for various coil specifications and production requirements.

10. What are the key advantages of using a Fully Automatic Coil Winding Machine?

Key benefits include increased productivity, consistent quality, reduced labor costs, low material waste, precise coil tension, and the ability to handle high volumes of coil production with minimal downtime and manual intervention.
